Product Details
Place of Origin: Sichuan, China
Brand Name: BONENS
Model Number: 3590S
Payment & Shipping Terms
Minimum Order Quantity: 50
Packaging Details: 50 pieces/box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: Delivery period ≤5000 14 days

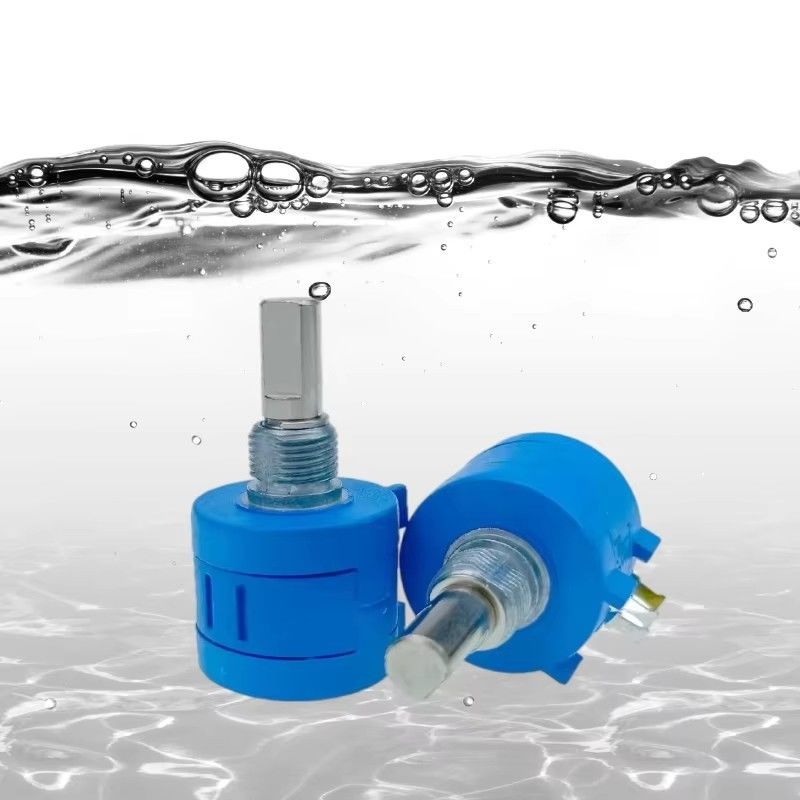

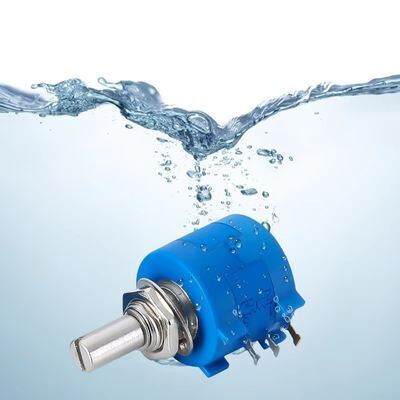

Waterproof Grade: |
IP67 |
Total Mechanical Travel: |
3600°±10° |
Rated Power: |
2W (70°C) |
Range Of Nominal Resistance: |
100~100KΩ |
Resistance Tolerance: |
±2%, ±5% |
Linear Accuracy: |
±1%, ±0.5% |
Waterproof Grade: |
IP67 |
Total Mechanical Travel: |
3600°±10° |
Rated Power: |
2W (70°C) |
Range Of Nominal Resistance: |
100~100KΩ |
Resistance Tolerance: |
±2%, ±5% |
Linear Accuracy: |
±1%, ±0.5% |
|
Characteristics
|
Range of nominal resistance
|
10K
|
||||
|
Resistance tolerance
|
±5%
|
|||||
|
Terminal resistance
|
≤2%R or 5
|
|||||
|
Peak noise
|
≤100
|
|||||
|
Linear accuracy
|
±0.25%
|
|||||
|
Electrical angle
|
3600°±10°
|
|||||
|
Insulation resistance
|
≥ 200M
|
|||||
|
Withstand voltage
|
500V (DC or AC peak value)
|
|||||
|
Characteristics |
Rated power
|
2W (70°C)
|
||||
|
Temperature range
|
-55°C~ 125°C
|
|||||
|
TCR
|
±100x10-6/°C
|
|||||
|
Temperature shock
|
R≤±3%R
|
|||||
|
Collision (390m/S2, 4000 times)
|
R≤±1%R
|
|||||
|
Moisture proof (GJB306A-96-Method106, not for 7a,7b inapplicability)
|
R≤±3%R, Insulation Resistance≥100M
|
|||||
|
Vibration (10-500HZ, 0.75mm, 6h)
|
R≤±1%R, Electrical break≤100S
|
|||||
|
Climate category(IEC68-2-2)
|
R≤±3%R,Insulation Resistance≥100M, Starting Torque≤20mN.m
|
|||||
|
Operation at low temperature(-55°C, 4h)
|
R≤±3%R,Starting Torque≤20mN.m
|
|||||
|
Rotational life(10000cscles)
|
R≤±3%R,peak noise≤500,Starting Torque≤20mN.m
|
|||||
|
Electrical endurance (70°C, 2W, 1000h)
|
R≤±3%R
|
|||||
|
Steady damp heat (IEC68-2-3, Ca, 96h)
|
R≤±3%R, Insulation Resistance≥100M, Starting Torque≤20mN.m
|
|||||
|
Characteristics |
Total mechanical travel
|
3600°±10°
|
||||
|
Rotational torque
|
2~10mN.m
|
|||||
|
Stopper torque
|
≥300mN.m
|
|||||
