PRODUCT NAME

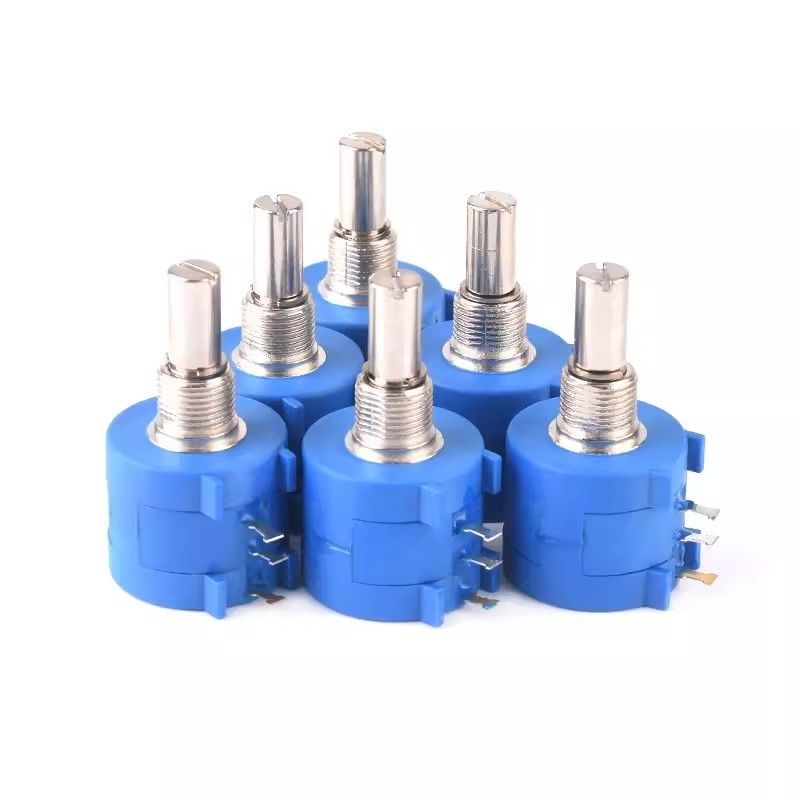

3590 precision multi turn wire wound potentiometer 10K ohm
PRODUCT DESCRIPTION
Potentiometer type:Multi turn potentiometer
Potentiometer material:wire wound
model:3590S-2-103L
Resistance: 10K Ω
Permissible resistance range: ± 5%
Electrical rotation angle: 3600 ° ± 10 °(10 turn)
Rated power: 2W (70 ℃)
Temperature range: -55 ℃~+125 ℃
Total mechanical stroke: 3600 ° ± 10 °(10 turn)
Shaft type:Circular shaft D shaft
shaft material: metal shaft
Shaft diameter: 6.3mm
shaft length:20mm
Resistance value variation mode: linear
Packaging: 25 pieces/board, 50 pieces/box,12 boxes/large box
Accessories: 3590S potentiometer matching nut and washer
PRODUCT PACKAGING
25 pcs/board
2 boards(50 pcs)/box,1
2boxs(600 pcs)large box
PRODUCT WEIGHT
The weight of the 3590S potentiometer is 17.9g/piece (excluding nuts and washers), and the weight of the circular shaft and D shaft of the 3590S potentiometer are both 17.9g
DESCRIPTION
The 3590 series Potentiometer is a multi turn wound Potentiometer. The precision potentiometer 3590S is suitable for circuit adjustment of various electronic equipment, and is commonly used to measure the linear distance, angle or rotation of production equipment, industrial testing and measuring equipment and medical equipment. The 3590S Potentiometer is made of high-quality materials with high precision and long service life. It supports customization. You can take samples. You are welcome to consult and order
Each 3590 potentiometer comes with a nut and washer
SPECIFICATION PARAMETERS
|
Characteristics |
Range of nominal resistance
|
10K
|
||||
|
Resistance tolerance
|
±5%
|
|||||
|
Terminal resistance
|
≤2%R or 5
|
|||||
|
Peak noise
|
≤100
|
|||||
|
Linear accuracy
|
±0.25%
|
|||||
|
Electrical angle
|
3600°±10°
|
|||||
|
Insulation resistance
|
≥ 200M
|
|||||
|
Withstand voltage
|
500V (DC or AC peak value)
|
|||||
|
Environment
Characteristics |
Rated power
|
2W (70°C)
|
||||
|
Temperature range
|
-55°C~ 125°C
|
|||||
|
TCR
|
±100x10-6/°C
|
|||||
|
Temperature shock
|
R≤±3%R
|
|||||
|
Collision (390m/S2, 4000 times)
|
R≤±1%R
|
|||||
|
Moisture proof (GJB306A-96-Method106, not for 7a,7b inapplicability)
|
R≤±3%R, Insulation Resistance≥100M
|
|||||
|
Vibration (10-500HZ, 0.75mm, 6h)
|
R≤±1%R, Electrical break≤100S
|
|||||
|
Climate category(IEC68-2-2)
|
R≤±3%R,Insulation Resistance≥100M, Starting Torque≤20mN.m
|
|||||
|
Operation at low temperature(-55°C, 4h)
|
R≤±3%R,Starting Torque≤20mN.m
|
|||||
|
Rotational life(10000cscles)
|
R≤±3%R,peak noise≤500,Starting Torque≤20mN.m
|
|||||
|
Electrical endurance (70°C, 2W, 1000h)
|
R≤±3%R
|
|||||
|
Steady damp heat (IEC68-2-3, Ca, 96h)
|
R≤±3%R, Insulation Resistance≥100M, Starting Torque≤20mN.m
|
|||||
|
Physical
Characteristics |
Total mechanical travel
|
3600°±10°
|
||||
|
Rotational torque
|
2~10mN.m
|
|||||
|
Stopper torque
|
≥300mN.m
|
|||||
PRODUCT SIZE
APPLICATION AREA
The 3590S wire wound multi turn potentiometer is widely used in fields such as displays, visual doorbells, visual walkie talkies, mobile phones, cordless phones, radio frequency heads, electronic tuners, remote controls, instruments, power supplies, communication, medical equipment, electrical equipment, railway signals, aviation, etc.
