Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: series
Payment & Shipping Terms
Product Name: |
Single Turn Wirewound Potentiometer |
Model: |
WX14-12 |
Resistance: |
±5%,±10% |
Package Diameter: |
24mm |
Shape: |
Round |
Number Of Turns: |
1turn |
Sealable: |
Ip40 |
Shaft: |
Nickel Plated Rail |
Element: |
Wirewound |
Terminal: |
Solder Lug |
Taper-linea: |
X |
Linearity: |
±5%～±10% |
Resistance-minimum: |
1Ω |
Resistance-maximum: |
22k |
Tolerance Resistance: |
±5%/±10% |
Power-rating: |
3w |
Angle Of Rotation: |
300° |
Rotational Life (no Load) Cycles: |
10000 |
Shaft Diameter: |
4mm |
Shaft Length: |
20mm |
Panel Diameter: |
23mm |
Product Name: |
Single Turn Wirewound Potentiometer |
Model: |
WX14-12 |
Resistance: |
±5%,±10% |
Package Diameter: |
24mm |
Shape: |
Round |
Number Of Turns: |
1turn |
Sealable: |
Ip40 |
Shaft: |
Nickel Plated Rail |
Element: |
Wirewound |
Terminal: |
Solder Lug |
Taper-linea: |
X |
Linearity: |
±5%～±10% |
Resistance-minimum: |
1Ω |
Resistance-maximum: |
22k |
Tolerance Resistance: |
±5%/±10% |
Power-rating: |
3w |
Angle Of Rotation: |
300° |
Rotational Life (no Load) Cycles: |
10000 |
Shaft Diameter: |
4mm |
Shaft Length: |
20mm |
Panel Diameter: |
23mm |

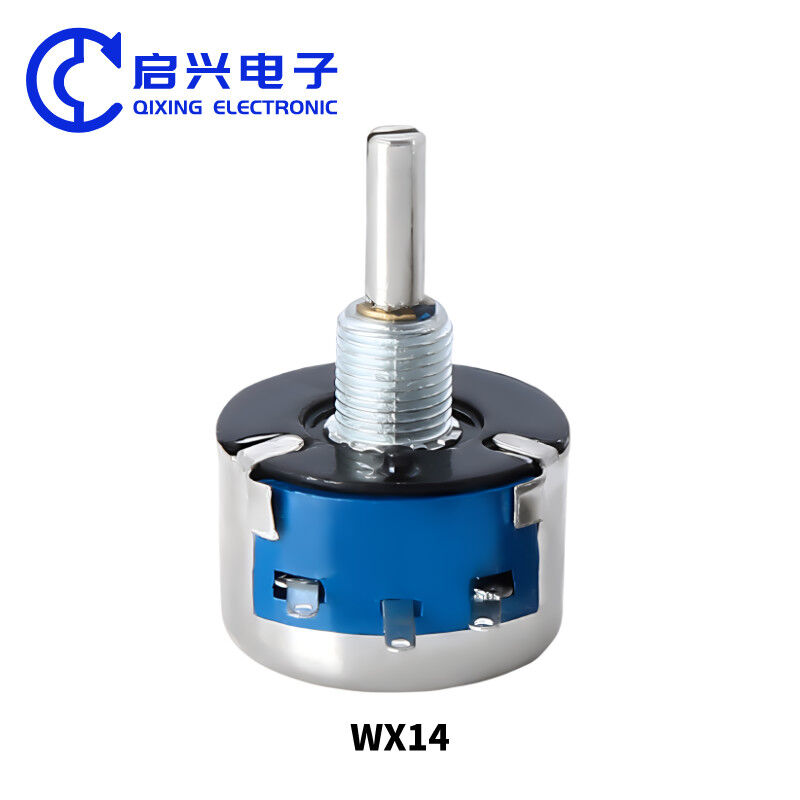

WX14-12 3W single turn Wirewound Potentiometer 1K 2K2 3K3 4K7 20K 10K 22K 100R 470R
product name:
WX14-12 3W single turn Wirewound Potentiometer 1K 2K2 3K3 4K7 20K 10K 22K 100R 470R
product description:
WX14-12 single-circle wire winding power unit, power of 3W, axis diameter 4mm, outer circular diameter 24mm, open hole 8.3mm, accuracy: ± 5% knob angle: 300 ° C, axis length: 20mm, resistance: 27Ω 33Ω 47Ω 56Ω 56Ω 56Ω 68Ω 100Ω 220Ω 270Ω 330Ω 470Ω 560Ω 680Ω 1K 1K5 2K3 4K7 5K1 5K6 6K8 10K 15K 20K 20K
Product Features:
1. The use of silver contact copper parts, increase the frequency of the conductor, increase the contact effect, and enhance the conductor
Performance
2. Preferably thick iron shell material material iron material resistance resistance, high mechanical strength long service life, reliable performance, sufficient
To resist bad weather
3. Multiple resistance selection can customize various resistance values according to the customer's needs
Product size:
Specification parameters:
| 产品名称 product name |
Single turn wirewound potentiometer | 型号 model |
WX14-12 | 阻值偏差 Resistance |
±5%,±10% |
| 封装直径 package diameter |
24mm | 形状 shape |
圆形 round | 转数 number of turns |
1turn |
| 密封型 sealable |
ip40 | 轴 shaft |
金属 nickel plated rail |
电阻材料 element |
线绕 wirewound |
| 接线端 terminal |
接线片焊接 solder lug |
输出特性－线性 taper-linear |
x | 线性度 linearity |
±5%～±10% |
| 小阻抗 resistance-minimum |
1Ω | 大阻抗 resistance-maximum |
22k | 阻值误差 tolerance resistance |
±5%/±10% |
| 额定功率 power-rating |
3w | 旋转角度 angle of rotation |
300° | 旋转寿命(无负载)rotational life (no load) cycles | 10000 |
| 轴径 shaft diameter |
4mm | 轴长 shaft length |
20mm | 面板直径 panel diameter |
23mm |
application area:
product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
