Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: series
Payment & Shipping Terms
Product Name: |
Potentiometer |
Model: |
WX111(030) |
Resistance Range: |
1~47K |
Resistance Tolerance: |
±10% |
Power: |
3W |
Element: |
Wirewound |
Number Of Turns: |
1turn |
Shaft Specifications: |
20ZS-3 |
Shaft Diameter: |
6mm |
Outside Diameter: |
43mm |
Electrical Angle: |
280°±10° |
Mechanical Angle: |
300°±5° |
Mechanical Life: |
100000times |
Package: |
20pieces/box |
Product Name: |
Potentiometer |
Model: |
WX111(030) |
Resistance Range: |
1~47K |
Resistance Tolerance: |
±10% |
Power: |
3W |
Element: |
Wirewound |
Number Of Turns: |
1turn |
Shaft Specifications: |
20ZS-3 |
Shaft Diameter: |
6mm |
Outside Diameter: |
43mm |
Electrical Angle: |
280°±10° |
Mechanical Angle: |
300°±5° |
Mechanical Life: |
100000times |
Package: |
20pieces/box |

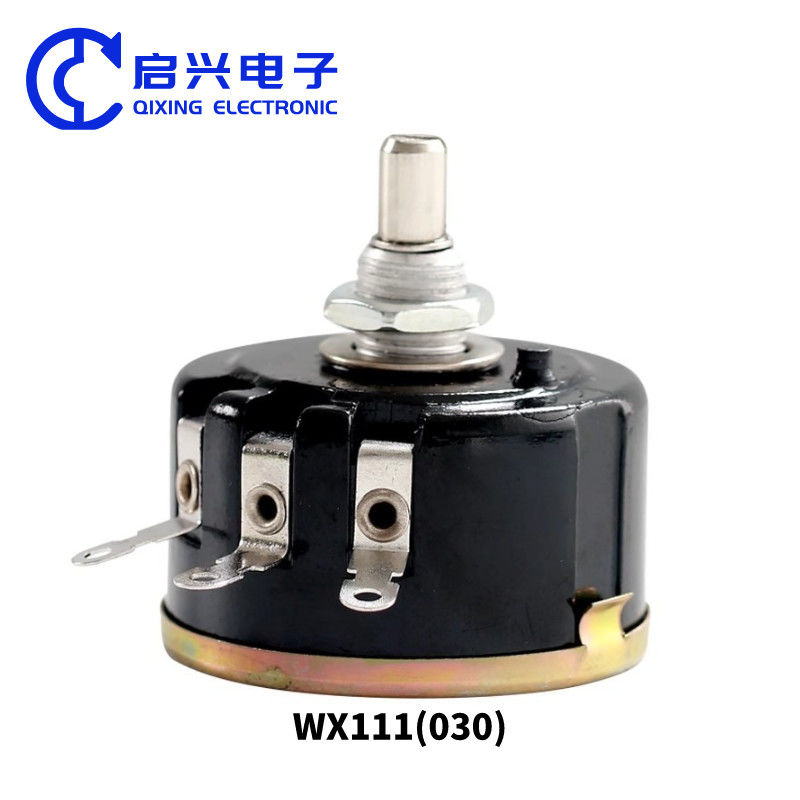

WX111 wx030 Single-turn wire wound potentiometer 3W adjustable resistor
product name:
WX111 wx030 Single-turn wire wound potentiometer, 3W adjustable resistor, 1K, 2.2K, 4.7K, 5.1K, 10K
product description:
WX111 wound Potentiometer, power: 3W/5w Product resistance: 1~47 Ω, rotation angle: 300 degrees, shaft diameter: 6MM, WX111 wound Potentiometer Product package: 20 pieces/box
Product Features:
Excellent craftsmanship, smooth operation, reliable and stable performance, insulated and dustproof interface, high protection level
Product size:
Specification parameters:
|
产品名称 product name |
电位器 potentiometer |
产品型号 Model |
WX111(030) |
|
阻值范围 Resistance range |
1~47K |
阻值偏差 resistance tolerance |
±10% |
|
功率 power |
3W |
电阻材料 Element |
线绕 Wirewound |
|
转数 Number of Turns |
1圈 1turn |
轴杆规格 Shaft specifications |
20ZS-3 |
|
轴直径 shaft diameter |
6mm |
外径 outside diameter |
43mm |
|
电气角度 Electrical Angle |
280°±10° |
机械角度 Mechanical Angle |
300°±5° |
|
机械寿命 mechanical life |
100000次 100000times |
包装 package |
20只/盒20 20pieces/box |
application area:
This product is suitable for precise adjustment of DC or low-frequency voltage and current in telecommunications, electricians, and electronic instrument equipment
product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
