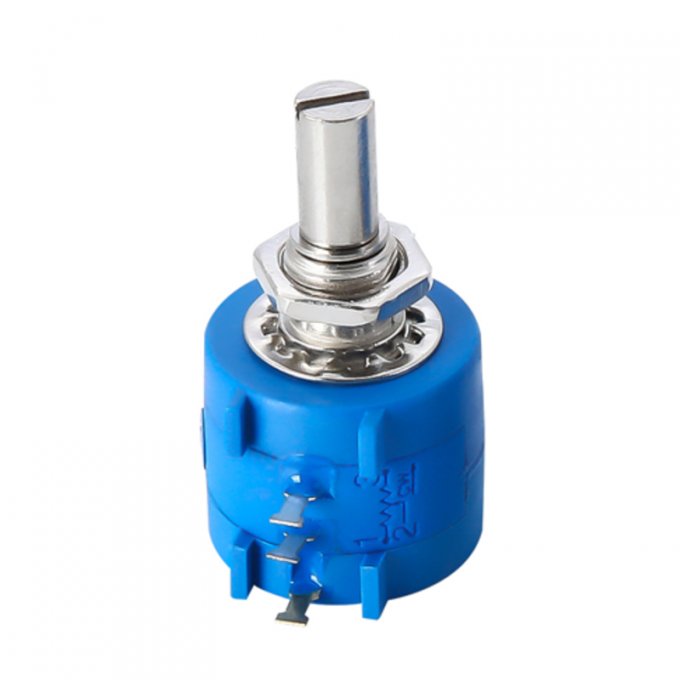

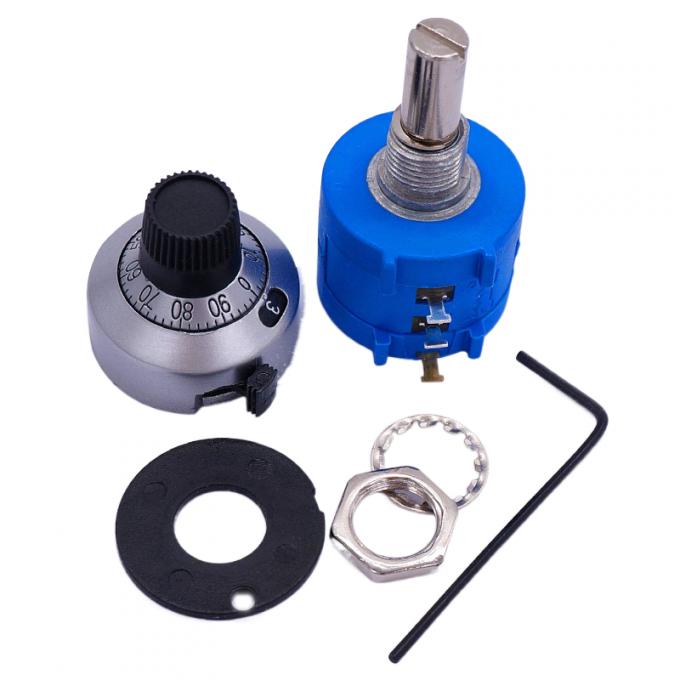

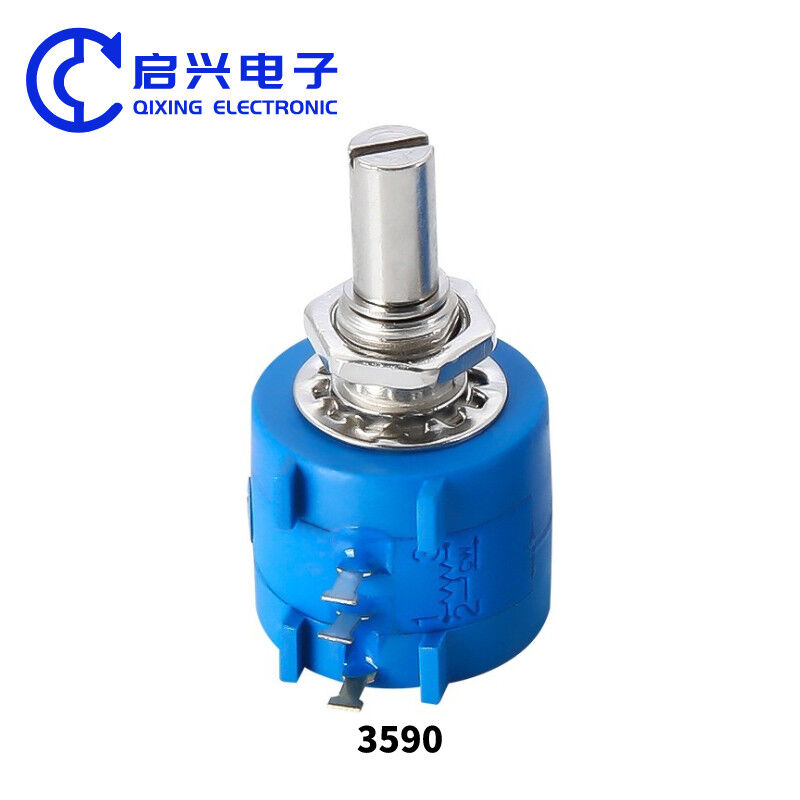

Bonens wxd3590 10 Turns 5k 10k 20k 50k 100K Spring Return Potentiometer

Product Details

Place of Origin: Chengdu, Sichuan

Brand Name: BONENS

Model Number: 3590S series

Payment & Shipping Terms

Get Best Price
Highlight:

20k Spring Return Potentiometer

,

5k Spring Return Potentiometer

,

10 Turns Spring Return Potentiometer

Bonens wxd3590 10 Turns 5k 10k 20k 50k 100K Spring Return Potentiometer
Bonens Wxd 3590 10 Turns 5k 10k 20k 50k100K Spring Return Potentiometer
Product Description
Bonens wxd3590 10 Turns 5k 10k 20k 50k 100K Spring Return Potentiometer 0
Bonens wxd3590 10 Turns 5k 10k 20k 50k 100K Spring Return Potentiometer 1

Bonens wxd3590 10 Turns 5k 10k 20k 50k 100K Spring Return Potentiometer 2
Bonens wxd3590 10 Turns 5k 10k 20k 50k 100K Spring Return Potentiometer 3



Specification
Electrical Characteristics
Range of nominal resistance
100~100KΩ
Resistance tolerance
±2%, ±5%
Terminal resistance
≤2%R or 5Ω
Linear accuracy
±1%, ±0.5%
Electrical angle
3600°±10°
Insulation resistance
≥ 200MΩ
Withstand voltage
500V (DC or AC peak value)



Environment Characteristics
Rated power
2W (70°C)
Temperature range
-55°C~+125°C
TCR
±100×10-6/°C
Temperature shock
ΔR≤±3%R
Collision (390m/S2, 4000 times)
ΔR≤±1%R
Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability)
ΔR≤±3%R, Insulation Resistance≥100MΩ
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±1%R,
Electrical break≤100μS
Rotational life(10000cscles)
ΔR≤±3%R,
peak noise≤500Ω
Starting Torque≤20mN.m
Electrical endurance (70°C, 2W, 1000h)
ΔR≤±3%R
Steady damp heat (IEC68-2-3, Ca, 96h)
ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m

Physical Characteristics
Total mechanical travel
3600°±10°
Rotational torque
2~10mN.m
Stopper torque
≥300mN.m
