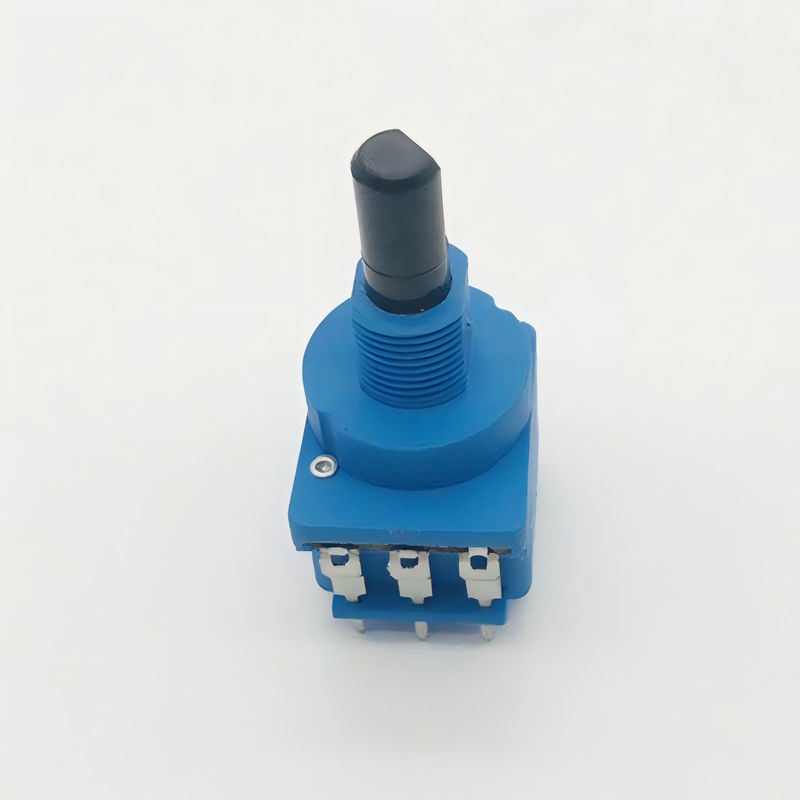

Product Details
Place of Origin: China
Brand Name: BONENS
Model Number: WH116AK
Payment & Shipping Terms
product name
product description
Technical Specifications:
Superior Materials & Craftsmanship:
Product size
Specification parameters
| Electrical Characteristic | ||
| serial number | project | characteristic |
| 1.1 | Total Resistance | 1KΩ to 2MΩ |
| 1.2 | Total Resistance Tolerance | ±10%,±20% |
| 1.3 | Resistance of temperature change character | 20℃~75℃:R/R≤±5%, -25℃~20℃:R/R≤±4.5% |
| 1.4 | Resistance Taper | A,B |
| 1.5 | Residual Resistance | R>250KΩ 0.1%max.of totalresistance 250KΩ>R>10KΩ 20Ω 10KΩ>R 10Ω max |
| 1.6 | Switch Rated Power | Carbon Film Type 0.2W |
| 1.7 | Max.Operating Voltage | AC 250V |
| 1.8 | Rotational Noise | Less than 100mV |
| 1.9 | Insulation Resistance | More than 100MΩ at DC250V |
| 1.1 | Withstand Voltage | For 1 minute at:DC500V |
| 1.11 | Withstand Electric Current | / |
| 1.11 | Switch Comtact Resistance | Less than 100mΩ |
| 1.12 | Switch Rated Power | AC 250V 10A |
| Mechanical Characteristics | ||
| 2.1 | Rotation Angle | 300°±5° |
| 2.2 | Rotation Torque | 20~200gf.cm |
| 2.3 | Pull-Push Strength | 6Kgf.cm |
| 2.4 | Rotational Stop-End Torque | 5kgf.cm |
| 2.5 | Resistance To Soldering Heat | 260±5℃and less than 3 seconds |
| 2.6 | Click Position | 32 detent 16 detent |
| 2.7 | Switch Action | 80~250gf.cm |
| Durabillity | ||
| 3.1 | Operating Temperature | -10℃~70℃ |
| 3.2 | Rotation Life | 15,000Cycles |
application area

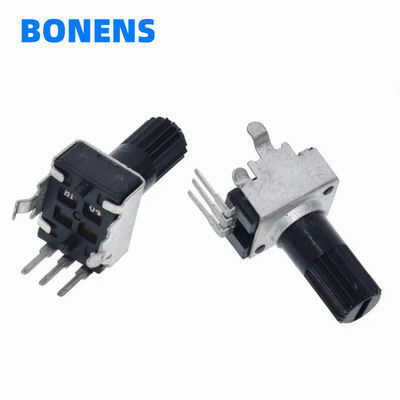

product catalog
Factory Display
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
