Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: series
Payment & Shipping Terms
Operating Temperature: |
-10°C~+70°C |
Manual Soldering: |
300°C Max. 3sec |
Total Resistance: |
10KΩ |
Resistance Tolerance: |
±20% (More Than 1MΩ±30%) |
Resistance Taper: |
B (A,C) |
Residual Resistance: |
20Ω(Max) |
Sliding Noise: |
Less Than 70mV |
Ralated Power(W): |
0.05W |
Max. Operating Voltage: |
DC 30V |
Insulation Resistance: |
More Than 100MΩ At DC 100v |
Withstand Voltage: |
I Minute At AC 100V |
Total Rotational Angle: |
220° ±5° |
Rotatioonal Torque: |
10-150gf.cm |
Shaft Pusg-pull Strength: |
Push Force 0.5kg. Max Pull Force 0.5kgf. Max |
Rotational Stopper Strength: |
1Kg.cm Min |
Rotational Life: |
10 000 Cycles |
Operating Temperature: |
-10°C~+70°C |
Manual Soldering: |
300°C Max. 3sec |
Total Resistance: |
10KΩ |
Resistance Tolerance: |
±20% (More Than 1MΩ±30%) |
Resistance Taper: |
B (A,C) |
Residual Resistance: |
20Ω(Max) |
Sliding Noise: |
Less Than 70mV |
Ralated Power(W): |
0.05W |
Max. Operating Voltage: |
DC 30V |
Insulation Resistance: |
More Than 100MΩ At DC 100v |
Withstand Voltage: |
I Minute At AC 100V |
Total Rotational Angle: |
220° ±5° |
Rotatioonal Torque: |
10-150gf.cm |
Shaft Pusg-pull Strength: |
Push Force 0.5kg. Max Pull Force 0.5kgf. Max |
Rotational Stopper Strength: |
1Kg.cm Min |
Rotational Life: |
10 000 Cycles |

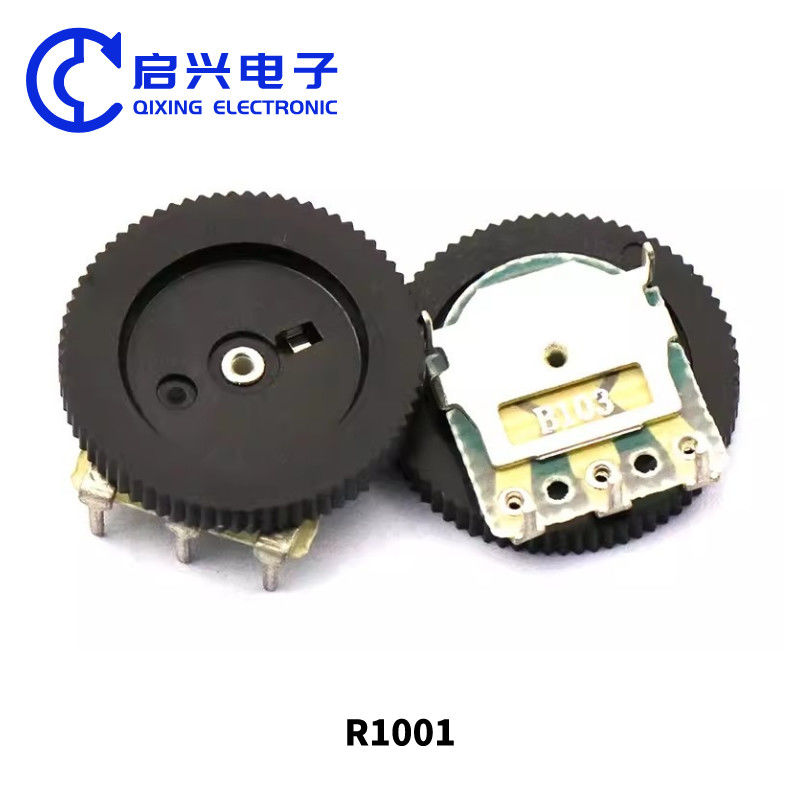

1K Ohm Dial Wheel Potentiometer for Audio Stereo Volume Switch Control 16x6mm
product name:
1K Ohm Dial Wheel Potentiometer for Audio Stereo Volume Switch Control 16x6mm
product description:
The dial on the dial potentiometer generally refers to the dial of the cylindrical edge gear, which can adjust the resistance of the potentiometer by rotation to achieve the purpose of changing the circuit voltage. Generally, it is mostly used for volume adjustment in radios, cassette recorders, repeaters, MP3s, stereos, etc.
Product Features:
Advantages of dial gear potentiometer: small size, light weight, gear design, adjustable resistance value, easy to operate, support high and low level triggering, strong wear resistance, long life, high resolution, wide use
Product size:
Specification parameters:
| General | |
| Operating temperature | -10°C~+70°C |
| Manual soldering | 300°C Max. 3sec |
| Electronical Characteristics | |
| Total resistance | 10KΩ |
| Resistance tolerance | ±20% (More than 1MΩ±30%) |
| Resistance taper | B (A,C) |
| Residual resistance | 20Ω(Max) |
| Sliding noise | Less than 70mV |
| Ralated power(W) | 0.05W |
| Max. Operating voltage | DC 30V |
| Insulation resistance | More than 100MΩ at DC 100v |
| Withstand voltage | I Minute at AC 100V |
| Mechanicial Characteristics | |
| Total rotational angle | 220° ±5° |
| Rotatioonal torque | 10-150gf.cm |
| Shaft pusg-pull strength | Push force 0.5kg. Max Pull force 0.5kgf. Max |
| Rotational stopper strength | 1Kg.cm Min |
| Rotational life | 10 000 Cycles |
application area:
R1001 dial gear potentiometer, single and dual volume control potentiometer is used for volume adjustment of radio, cassette recorder, repeater, MP3 audio, etc.
product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
