Product Details
Place of Origin: Sichuan, China
Brand Name: BONENS
Model Number: WX112(050)
Payment & Shipping Terms
product name:

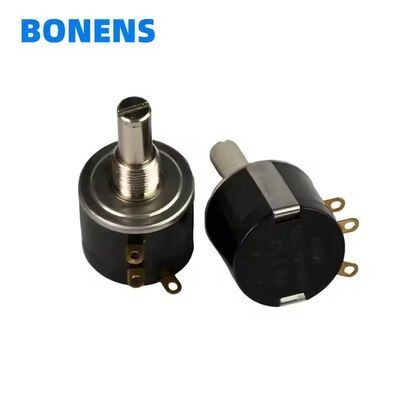

WX112 WX050 5W single turn wire wound potentiometer adjustable resistance 100R 330R 470R 1K 2K2 3K3 4K7 5K6 6K8 10K 22k 33K 47K
product description:
WX112 single-coil wire winding potentiometer shaft diameter: 6mm, shaft rod specification: 20-ZS-3, outer diameter: 45mm, resistance accuracy: ±5% ±10%, power: 5W, packing: 20pcs/box
Product Features:
WX112 WX050 Single -wire Winding Power Titles Features: Linear stability, uniform rotation damping, uniform resistance changes, high life times, excellent process, smooth movement, reliable performance, insulation and dustproof wound port, wide range of applicable scope, high protection level. Uses, multimedia, audio, amplifier, electronic equipment, etc.
Product size:
Specification parameters:
|
Package Diameter(mm)
|
45
|
Shape
|
Round
|
Number of Turns
|
1
|
|
Sealable
|
IP40
|
Shaft
|
Nickel Plated Rail
|
Element
|
Wirewound
|
|
Terminal
|
Solder Lug
|
Taper
|
Linear(B)
|
Linearity
|
±5%~±10%
|
|
Resistance-Minimum
|
22Ω
|
Resistance-Maximum
|
47K
|
Tolerance resistance
|
±5%/±10%
|
|
Power-Rating(W)
|
5W
|
Angle of rotation
|
300°
|
Rotational Life (no load) Cycles
|
10000
|
|
SHAFT DIAMETER
|
6mm
|
Standard Package
|
20pieces/box
|
|
|
|
Resistance Range
|
100R 220R 330R 470R 560R 680R 1K 1.5K 2.2K 3.3K 4.7K 5.6K 6.8K 10K 15K 22K 33K 47K
|
||||
application area:
Mainly used in instruments, precision mechanical equipment, welding equipment, audio equipment, automation equipment, communication, medical facilities, frequency converters, game consoles, UPS power supplies, etc
product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
