WH116AK B500K 100K 500K Potentiometer High Current Dimmer 1000W Dual Control Button Potentiometer

product name

R16P2S 500K 4mm Carbon Resistant Dimmer Light Potentiometer Push Push Switch Home Appliance Industrial Lighting Control

product description

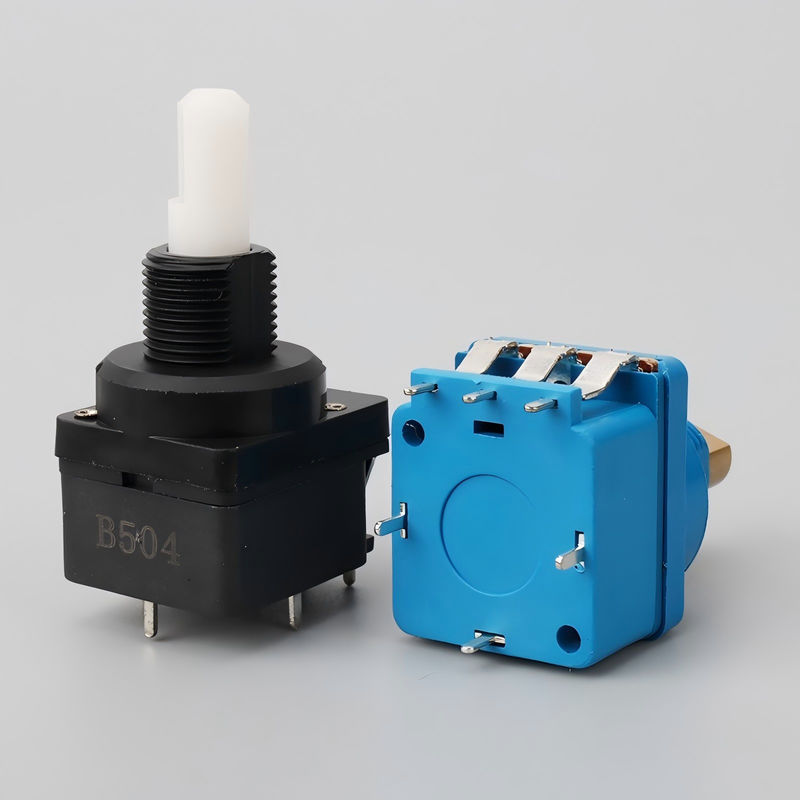

WH116AK is a high-performance carbon film rotary potentiometer with a press switch function, widely used for dimming, speed regulation, and volume adjustment. Resistance value range: 1k Ω~2M Ω, allowable deviation of resistance value ± 18%, rated power: 0.2W, mechanical life: 50000 times. The main structure of WH116AK potentiometer is made of flame-retardant fiberglass reinforced engineering plastic, which has high stability and reliability. The WH116AK potentiometer adopts special silver alloy contacts and soldered out terminals, which makes the contact of the potentiometer more reliable and can withstand larger currents and voltages. Application field: Due to its high reliability and long lifespan, WH116AK is widely used in home appliances, electronic instruments, dimming devices, medical devices, and other fields, as an important component for regulation and control

Product Features

The 17mm WH116 WH116AK dimmer potentiometer features a 270°±5° rotation range, with a rotary torque of 1-10 mN.m. It withstands 3 KGF.cm of force and has a switching travel of (3±0.5)mm, activated by 150-500g. Electrically, it operates from -20°C to +100°C and is rated for AC 250V 10A.

Product size

Specification parameters

application area

product catalog

Factory Display

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!

FAQ

1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
