1000W B100K B500K B470K Linear Rotary Potentiometer for WH116AK Series Light Dimmer

product name

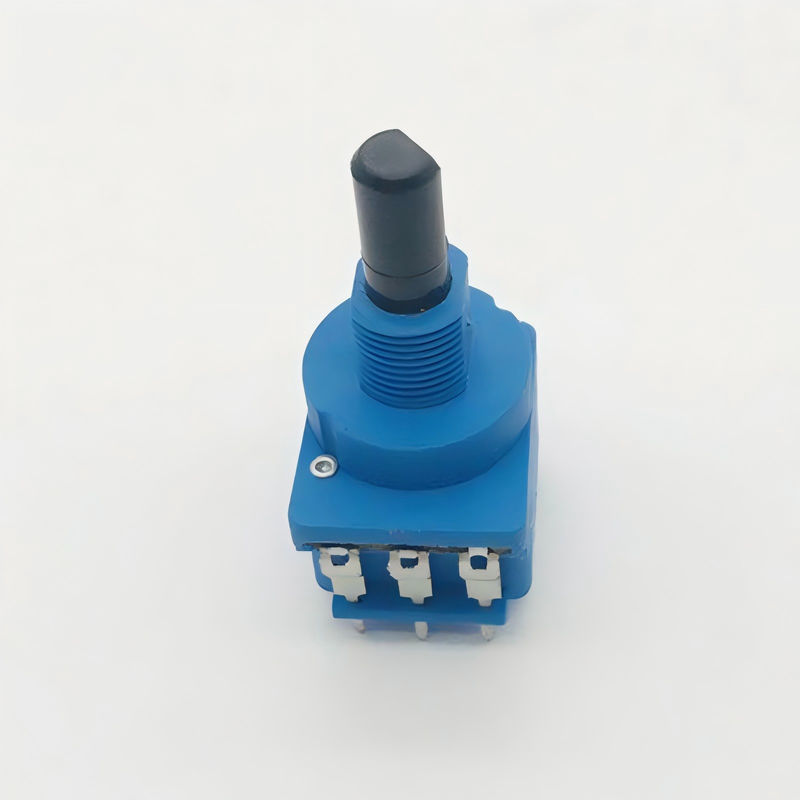

WH116AK R16P2S Vertical Terminal Pcb Mount Dimmer Light Rotary Potentiometer WIth 10A High Current Push Press Switch

lectrical Properties

• Operating Temperature Range: Wide range, e.g., (-20℃) to (100℃), ensuring operation under various environmental conditions.
• Switch Rating: AC 250V 10A, capable of handling high load currents and voltages.
• Switch Contact Resistance: Less than 50mΩ, ensuring good switch contact and reduced energy loss.
• Rated Power: 0.2W, suitable for most low-power applications.
• Rated Voltage: 250V, ensuring stable operation under the rated voltage.
• Insulation Resistance: More than 100MΩ at DC500V, providing excellent electrical insulation.
• Dielectric Strength: AC1500V, 1 minute (between carbon plate and contact) and AC750V, 1 minute (between open contacts), ensuring electrical safety under high voltage conditions.

Product Features

The WH116AK rotary carbon film potentiometer, adorned with esteemed certifications from VDE and NEMKO CB, features a Single Pole Double Throw (SPDT) switch contact form, adhering to the rigorous 1058-1/EN61058-1 (VDE0630) standard. This standard ensures unparalleled reliability, an extended lifespan, and robust switching capabilities, catering to demanding applications.

Crafted with precision, the primary structure embraces flame-retardant fiberglass-reinforced engineering plastics, offering enhanced safety and durability. The switch component boasts special silver alloy contacts, renowned for their superior conductivity and wear resistance, ensuring smooth and reliable operation over time.

The terminal design adopts a welding-type lead-out configuration, simplifying installation and enhancing connectivity reliability. Versatile in nature, this potentiometer finds widespread applications across industries, including household appliances, electronic instruments, dimming devices, medical equipment, and more, where precision and durability are paramount.

In summary, the WH116AK rotary carbon film potentiometer, with its adherence to rigorous standards, premium materials, and versatile design, stands as a testament to innovation and reliability in electronic components.

Product size

Specification parameters

application area

Due to its excellent performance and stability, the WH116AK rotary carbon film potentiometer is widely applied in consumer electronics (such as audio devices, remote controls, etc.), automotive electronics (e.g., window lift controls, audio adjustments), and industrial controls (like automation equipment, robot controls).

product catalog

Factory Display

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
