Product Details
Place of Origin: chengdu
Brand Name: bonens
Model Number: RVQ24YN03
Payment & Shipping Terms
Standard Resistance Range: |
1kΩ To 100kΩ |
Resistance Tolerance: |
±10% Standard |
End Resistance: |
32Ωmax |
Resistance Taper: |
B=linear |
Independent Linearity: |
±3%max |
Peak Noise(C.R.V): |
3%max |
Power Rating: |
0.5 Watt At+40℃,0 Watt At +85℃ |
Maximum Input Voltage: |
200VDC Or Power Rating,whichever Is Smaller |
Insulation Resistance: |
100MΩ Minimum At 1,000VDC |
Dielectric Strength: |
1,000VAC,1 Minute |
Adjustment Travel: |
280° |
Mechanical Travel: |
300°±5° |
Standard Resistance Range: |
1kΩ To 100kΩ |
Resistance Tolerance: |
±10% Standard |
End Resistance: |
32Ωmax |
Resistance Taper: |
B=linear |
Independent Linearity: |
±3%max |
Peak Noise(C.R.V): |
3%max |
Power Rating: |
0.5 Watt At+40℃,0 Watt At +85℃ |
Maximum Input Voltage: |
200VDC Or Power Rating,whichever Is Smaller |
Insulation Resistance: |
100MΩ Minimum At 1,000VDC |
Dielectric Strength: |
1,000VAC,1 Minute |
Adjustment Travel: |
280° |
Mechanical Travel: |
300°±5° |
product name

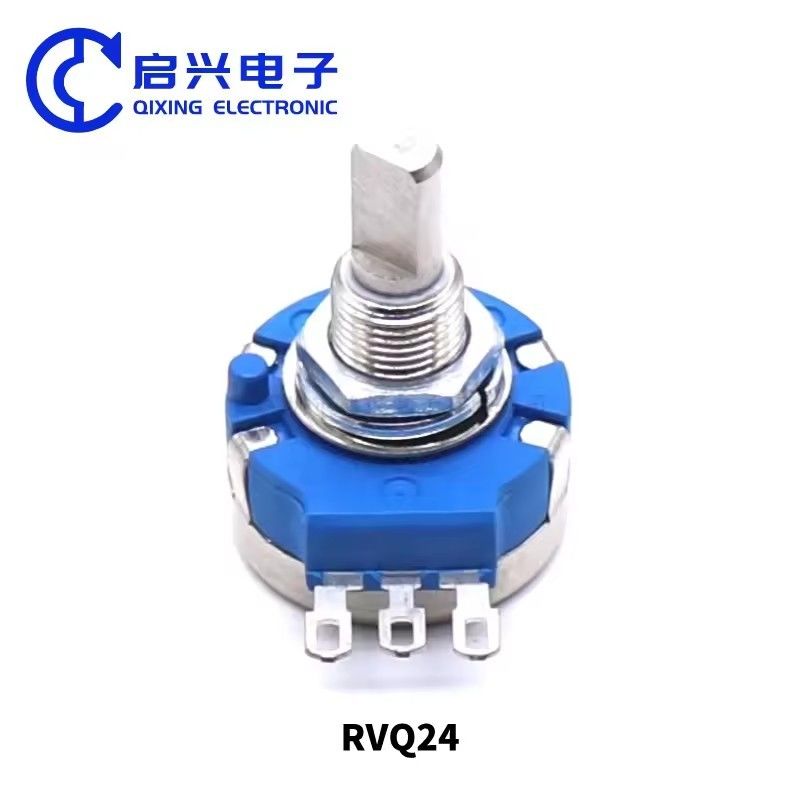

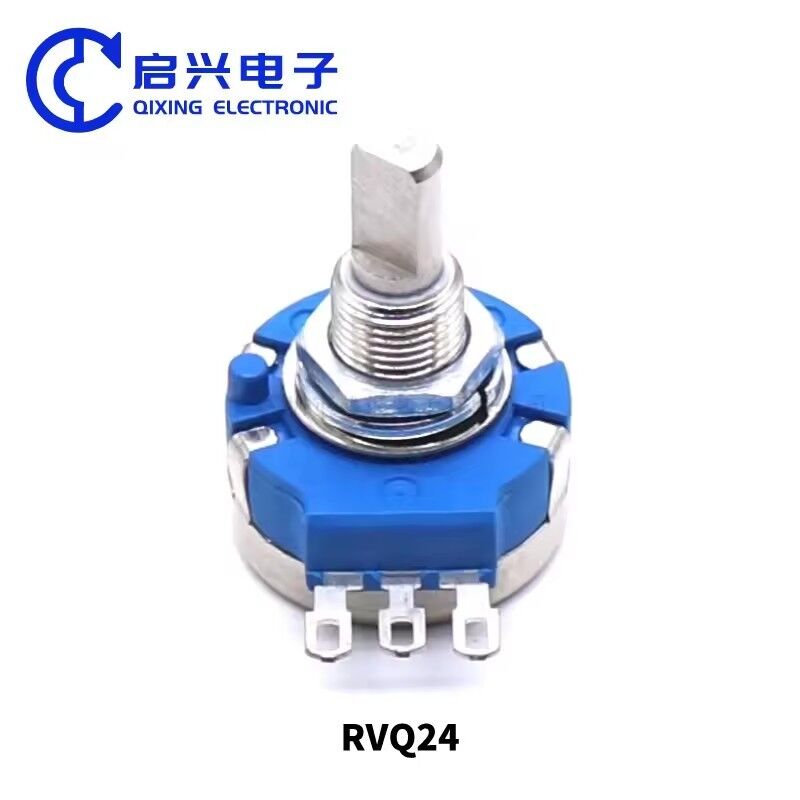

RVQ24 potentiometer metal carbon membrane potentiometer Rvq24yn03 20S B502 longevity potentiometer RVQ24 RVQ24YN RVQ24YN03
product description
RVQ24YN03 series potentiometer, high -quality precision potentiometer, long life rotor potentiometer, diameter 24mm potentiometer, single -circle carbon membrane potentiometer, industrial panel control potentiometer, RVQ24 metal axis potentiometer, longevity game electrical unit, precision instrument potential potential power level Instrument.
Product Features
RVQ24YN03 long life gaming power level advantage: rotating life is as high as 3 million, with high precision and stability, optional resistance can meet the needs of various circuits, there are multiple shafts long, shafts available, installed installation, installation, installation, installation, installation Simple, convenient adjustment, wide application
Long life 24mm diameter, ingle-turn industrial panel controls
Carbon film element
Single unit, single shaft
High quality,2,000,000 cycle rotational life
Low cost
lndependent linearity, +3% max.
Metal shaft and bushing
Linear taper
6mm diameter shafts in slot, flat or round end styles
Standard 15mm or 20mm shaft length
Panel mount style
Right angle ear-lug terminals
Continuous rotation units available as special order
Product size
Specification parameters
| Electrical | |
| Standard Resistance Range | 1kΩ to 100kΩ |
| Resistance Tolerance | ±10% standard |
| End Resistance | 32Ωmax |
| Resistance Taper | B=linear |
| Independent Linearity | ±3%max |
| Peak Noise(C.R.V) | 3%max |
| Power Rating | 0.5 watt at+40℃,0 watt at +85℃ |
| Maximum Input Voltage | 200VDC or power rating,whichever is smaller |
| Insulation Resistance | 100MΩ minimum at 1,000VDC |
| Dielectric Strength | 1,000VAC,1 minute |
| Adjustment Travel | 280° |
| Mechanical | |
| Mechanical Travel | 300°±5° |
| Shaft Torque | 100 gf·cm(1.386 oz·in)max. |
| Stop Strength | 9 kgf·cm(124.76 oz·in)min. |
| Shaft Strength (push) | 125N(12.75 kgf)min |
| Shaft Strength (tensile) | 125N(12.75 kgf)min. |
| Shaft End Play | ±0.4×(shaft length/30)mm max. |
| Mounting Nut Torque | 15 kgf·cm(207.94 oz·in)min. |
| Marking | Model type,taper,resistance code,shaft type,terminal identification,date code |
| Environmental | |
| Temperature Range | -10℃ to +85℃ |
| Temperature Characteristics | +80℃,5 hours T/R≤±5% |
| Temperature Cycle | -10℃,+80℃, 30 minutes each,5 cycles T/R≤±10% |
| Load Life | +40℃,0.5 watt,1,000 hours T/R≤±10% |
| Moisture and Load Life | +40℃,90-95%RH,0.5 watt,500 hours AT/R≤±20% |
| Vibration | 10-55Hz,1.5mm amplitude,3 directions T/R≤±5% |
| Soldering Heat Resistance | 350℃±5℃,3 seconds T/R≤±2% |
| Rotational Life | 2,000,000 cycles without load T/R≤±15% |
| T/R=Total Resistance Change | |
application area
RVQ24YN03 long life gaming electric level is suitable for the throttle and brakes, car audio, industrial control panels, CNC equipment precision instruments, machine tools, home appliances, communication equipment, etc.
