Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: series
Payment & Shipping Terms
Range Of Nominal Resistance: |
100Ω~100KΩ |
Resistance Tolerance: |
±5% |
Terminal Resistance: |
≤±0.2%R Or 5Ω |
Peak Noise: |
≤100Ω |
Insulation Resistance: |
≥ 200MΩ (100V AC) |
Withstand Voltage: |
500V (DC Or AC Peak Value) |
Electrical Angle: |
3600° ± 10 ° |
Rated Power: |
2W ( 300V 70 °C ) |
Temperature Range: |
-55°C~+125°C |
TCR: |
±100×10-6/°C |
Collision (390m/S2, 4000 Times): |
ΔR≤±1%R |
Vibration (10-500HZ, 0.75mm, 6h): |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical Break≤100μS |
Temperature Variation (-55°C/30min, +125°C/30min, 5 Cycles): |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
Climate Category (IEC68-2-2): |
ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ |
Electrical Endurance (2W, 1000h): |
ΔR≤± 3%R |
Mechanical Endurance (1000 Cycles): |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R Or 5Ω |
Steady Damp Heat (IEC68-2-3, Ca, 96h): |
ΔR≤± 3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m |
Total Mechanical Travel: |
3600° ± 10 ° |
Rotational Torque: |
36mN.m |
Standard Package: |
50 Pcs /box |
Range Of Nominal Resistance: |
100Ω~100KΩ |
Resistance Tolerance: |
±5% |
Terminal Resistance: |
≤±0.2%R Or 5Ω |
Peak Noise: |
≤100Ω |
Insulation Resistance: |
≥ 200MΩ (100V AC) |
Withstand Voltage: |
500V (DC Or AC Peak Value) |
Electrical Angle: |
3600° ± 10 ° |
Rated Power: |
2W ( 300V 70 °C ) |
Temperature Range: |
-55°C~+125°C |
TCR: |
±100×10-6/°C |
Collision (390m/S2, 4000 Times): |
ΔR≤±1%R |
Vibration (10-500HZ, 0.75mm, 6h): |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical Break≤100μS |
Temperature Variation (-55°C/30min, +125°C/30min, 5 Cycles): |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
Climate Category (IEC68-2-2): |
ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ |
Electrical Endurance (2W, 1000h): |
ΔR≤± 3%R |
Mechanical Endurance (1000 Cycles): |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R Or 5Ω |
Steady Damp Heat (IEC68-2-3, Ca, 96h): |
ΔR≤± 3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m |
Total Mechanical Travel: |
3600° ± 10 ° |
Rotational Torque: |
36mN.m |
Standard Package: |
50 Pcs /box |

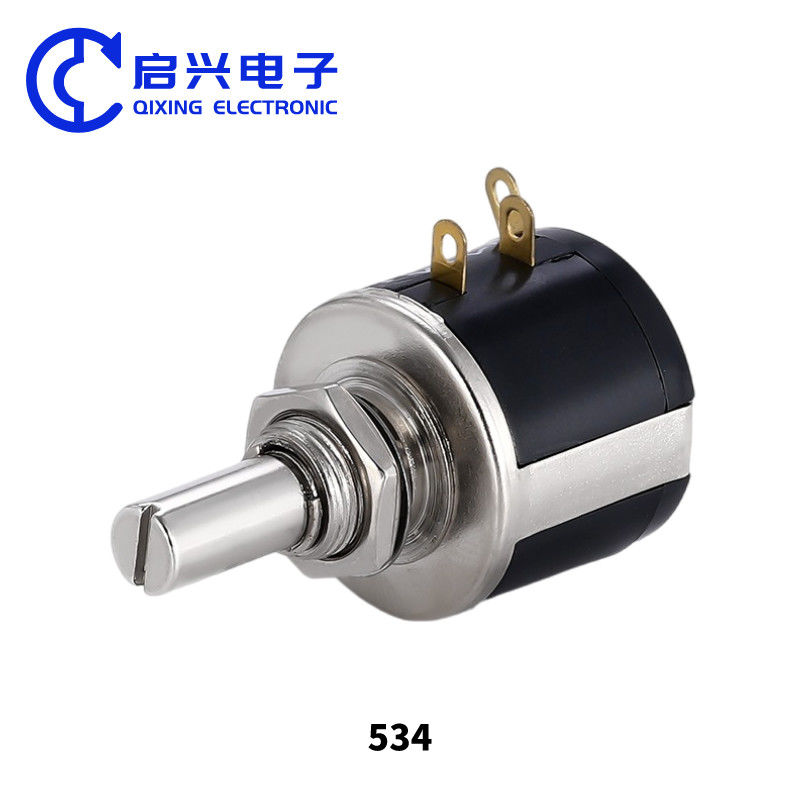

534 Precision multi-turn Wirewound Precision Potentiometer 1K 2K 5K 10K 20K 50K 100K 100K
product name:
Precision potentiometer/winding potentiometer/multi -circle potentiometer/2W potentiometer
534-1-1K Potentiometer 534 Multiturn Potentiometer Wirewound Potentiometer 10-Turn Potentiometer 2W Potentiometer Product Introduction: 534-1-1K 534-1-2K 534-1-5K 534-1-10K 534-1-1K
534 Precision multi-turn wire wound potentiometer, 10-turn variable frequency speed control potentiometer, 2W 1K 2K, 5K 10K, 20K 50K
product description:
Wire around multiple circle precision potentiometers; electrical characteristics: resistance range: 100Ω, 200Ω, 500Ω, 1k, 2K, 5K, 10K, 20K, 50K, 100K, resistance tolerance: ± 5%, independent linear accuracy: ± 0.2% , Electronic itinerary: 3600 ° ± 10%, rated power: 2W; rotating life: 1,000,000 rpm; ambient temperature: -55 ℃ to+125 ℃.
Product Features:
The advantages of precision wire winding power 534 products: good thermal resistance, can withstand greater power, high accuracy, and small noise. Good performance, cheap price
Product size:
Specification parameters:
application area:
This product is widely used in fields such as displays, visual doorbells, visual walkie talkies, mobile phones, cordless telephones, radio frequency heads, electronic tuners, remote controls, instruments, power supplies, communication, medical equipment, power equipment, railway signaling, aviation, etc

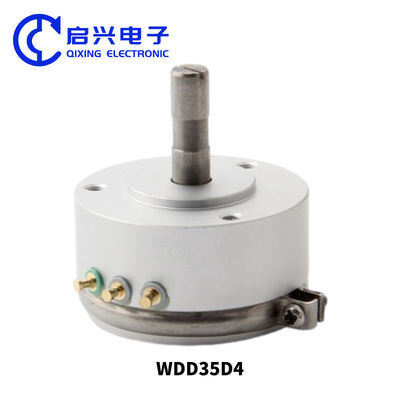

product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
