Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: series
Payment & Shipping Terms
Resistance: |
27Ω- 10kΩ |
Accuracy: |
±0.1% |
Dielectric Strength: |
500VAC |
Dimensions: |
22.2mm X 22.2mm X 22.2mm |
Insulation Resistance: |
100MΩ Min |
Mounting Type: |
Panel Mount |
Operating Temperature: |
–55°C To +125°C |
Power Rating: |
0.5W |
Product Name: |
Precision Potentiometer |
Resistance Range: |
1Ω To 10MΩ |
Resolution: |
0.1Ω |
Rotational Life: |
200,000 Cycles |
Temperature Coefficient: |
±50ppm/°C |
Terminal Type: |
Solder Lug |
Tolerance: |
±0.05% |
Weight: |
25g |
Resistance: |
27Ω- 10kΩ |
Accuracy: |
±0.1% |
Dielectric Strength: |
500VAC |
Dimensions: |
22.2mm X 22.2mm X 22.2mm |
Insulation Resistance: |
100MΩ Min |
Mounting Type: |
Panel Mount |
Operating Temperature: |
–55°C To +125°C |
Power Rating: |
0.5W |
Product Name: |
Precision Potentiometer |
Resistance Range: |
1Ω To 10MΩ |
Resolution: |
0.1Ω |
Rotational Life: |
200,000 Cycles |
Temperature Coefficient: |
±50ppm/°C |
Terminal Type: |
Solder Lug |
Tolerance: |
±0.05% |
Weight: |
25g |
product name:

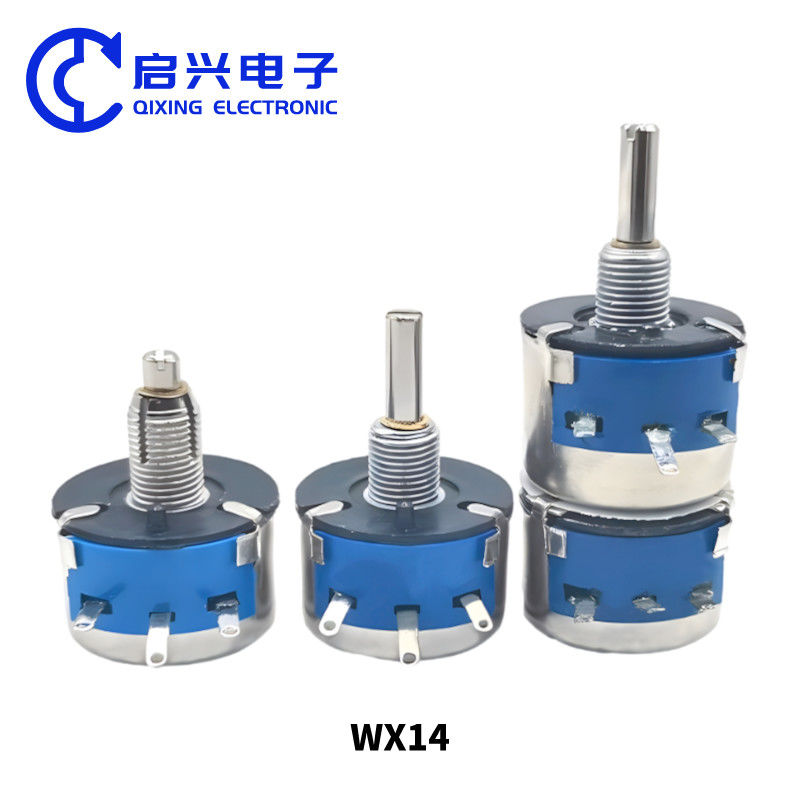

WX14-12 Single Wire Wound Potentiometer 3W 47R 100R 470R 1K 2K2 3K3 4K7 5K6 10K
product description:
WX14-12 Single-turn wire winding potentiometer 3Watt potentiometer base diameter 23MM height 15MM copper sleeve diameter 8MM half shaft diameter 4MM mechanical stroke 300°±10° resistance range 22Ω～27KΩ
Product Features:
1.Using silver-contact copper parts increases the conductivity frequency, enhances the contact effect, and boosts the conductor's performance.
2.Preferably, a thick iron shell material is chosen for its resistance to corrosion, high mechanical strength, long service life, reliable performance, and sufficient durability to withstand bad weather.
3.Multiple resistance options are available, allowing for customization of various resistance values according to the customer's needs.
Product size:
Specification parameters:
| product name | Single turn wirewound potentiometer | model | WX14-12 | Resistance | ±5%,±10% |
| package diameter | 24mm | shape | round | number of turns | 1turn |
| sealable | ip40 | shaft | nickel plated rail | element | wirewound |
| terminal | solder lug | taper-linear | x | linearity | ±5%～±10% |
| resistance-minimum | 22Ω | resistance-maximum | 27k | tolerance resistance | ±5%/±10% |
| power-rating | 3w | angle of rotation | 300° | rotational life (no load) cycles | 10000 |
| shaft diameter | 4mm | shaft length | 20mm | panel diameter | 23mm |
application area:
It is widely used in electronic instruments, meters, and electronic equipment
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
