Single Coil Carbon Film Potentiometer With Switch RV30YN20S RV30YNME20S B502 5K

RV30 series RV30YN20S RV30YNME20S B502 5K single coil carbon film potentiometer with switch

product name:

RV30 series single turn rotating carbon film potentiometer 3w

product description:

RV30YN20S single coil carbon film potentiometer, rated power 3W, shaft diameter 6mm, shaft length 20mm, outer diameter 30mm, shaft end slotted, resistance tolerance ± 10%, mechanical stroke 300 ° ± 5 ° C temperature range -10 ℃ -85 ℃, rotational life 20000 revolutions, power 3W, packaging 20pcs/box The resistance values of the RV30YN20S single coil carbon film potentiometer include: 100R, 200R, 500R, 1K, 2K, 5K, 10K, 20K, 50K, 100K, 200K, 500K, 1M, etc

Specification parameters:



Electrical
Standard Resistance Range				B = 100Ω to 2MΩ A,C = 1kΩ to 2MΩ
Resistance Tolerance				10% standard
End Resistance				3Ω max.
Resistance Taper				B = linear; A = CW audio (logarithm); C = CCW audio (logarithm)
Peak Noise (C.R.V.)				3% or 3Ω, whichever is greater
Power Rating				Ratings below at+40℃, 0 watt at+85℃
	Taper	R≤10kΩ	10kΩ<R≤50kΩ	50kΩ<R≤300kΩ	R>300kΩ
	B	1.0W	0.8W	0.6W	0.4W
	A,C	0.8W	0.6W	0.3W	0.2W
Maximum Input Voltage				B = 500VDC; A,C = 350VDC or power rating, whichever is smaller
Insulation Resistance				100MΩ minimum at 1,000VDC
Dielectric Strength				1,000VAC, 1 minute
Adjustment Travel				280°±10°
Mechanical
Mechanical Travel				300°±5°
Shaft Torque				51 to 306 gf •cm (0.707 to 4.242 oz • in)
				51 to 510 gf •cm (0.707 to 7.070 oz • in)
Stop Strength				10.2 kgf •cm (141.4 oz • in) max.
Mounting Nut Torque				15 kgf •cm (207.94 oz • in) max.
Solderability				235℃, 5 seconds
Marking				Model type, taper, resistance code,shaft type, terminal identification, date code
Environmental
Temperature Range				-10 ℃to ＋85 ℃
Temperature Characteristics				+85℃, 30 minutes without load
				R≤10kΩ ➞ ∆T/R≤±6%
				10kΩ＜R＜1MΩ ➞ ∆T/R≤±10%
				R≥1MΩ ➞ ∆T/R≤±15%
Load Life				±40℃, 1,000 hours with rated load
				∆T/R≤±10%
Moisture and Load Life				＋40 ℃, 90-95%RH,
				500 hours with rated load
				R＜100kΩ ➞ ∆T/R≤－10%~＋15%
				R≥100kΩ ➞ ∆T/R≤－10%~＋20%
Thermal Shock				-10℃ ~ ＋85℃,5 cycles without load
				∆T/R≤±10%
Vibration				10-55Hz, 1.5mm amplitude,3 directions, 2 hours each
				∆T/R≤±2.5%
Soldering Heat Resistance				350℃, 3.5 seconds ∆T/R≤±2%
Rotational Life				15,000 cycles (500 cycles for shaft lock models only) without load
				∆T/R≤±7%
Standard Rotary Switches
Switch Rating				110VAC, 1A or 3A, SPDT or SPST
Contact Resistance				0.05Ω max.
Operating Torque				1,530 gf •cm (21.21 oz • in) max.
Operating Life				10,000 cycles with rated load
R = Total Resistance Value; ∆T/R = Total Resistance Change

Product Features:

RV30 single turn carbon film potentiometer product features
▶ 30mm diameter, single-turn industrial panel controls
▶ Carbon film element Linear or audio tapers
▶ Single, tandem and triple units, single shaft; dual unit, dual shaft
▶ SPST or SPDT switch with 1A or 3A rating
▶ Shaft lock models Metal shaft and bushing
▶ Panel mount only Right angle ear-lug terminals
▶ 6mm diameter shafts in slot, flat or round end styles
▶ Standard 15mm or 20mm shaft lengt

Product size:

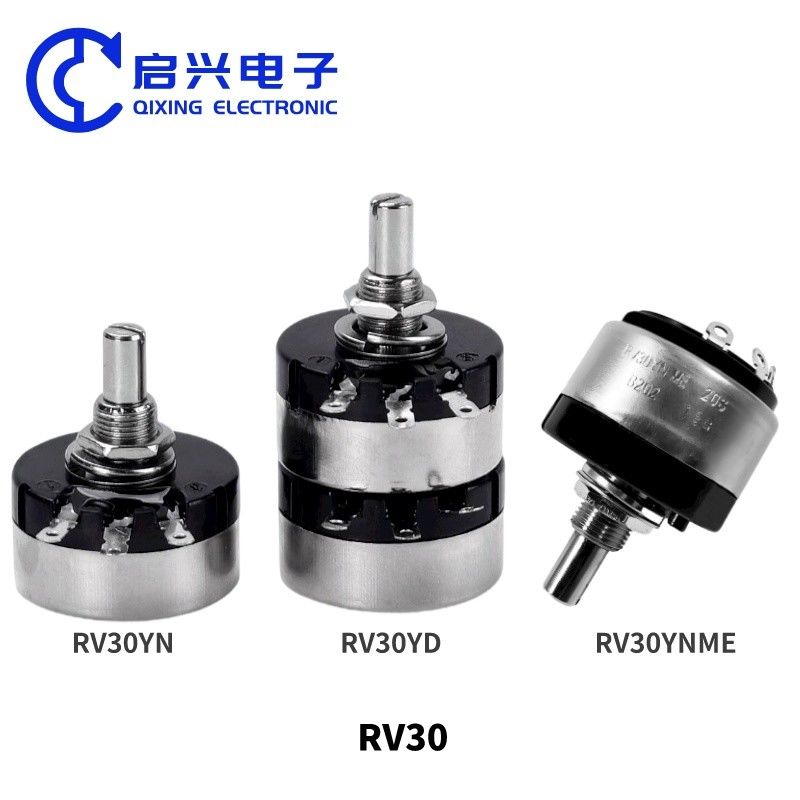

RV30 Series Dimensions

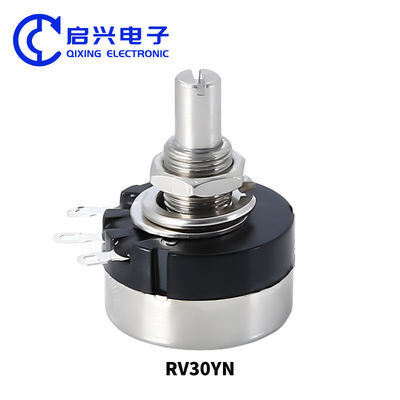

RV30YN

▶ Panel Mount, Single Unit, Single Shaft, Right Angle Ear-Lug Terminals

▶ RV30YNHT High Torque or RV30YS Panel Seal Models available as Special Order.

RV30YL

▶ Panel Mount, Single Unit, Single Shaft with Shaft Lock

▶ Right Angle Ear-Lug Terminals

RV30YNSE & RV30YNSF

▶ Panel Mount, Single Unit with Switch, Single Shaft

▶ Right Angle Ear-Lug Terminals, Rear Exit Lug Terminals for 1A or 3A SPST Switch

RV30YNME & RV30YNMF

▶ Panel Mount, Single Unit with Switch, Single Shaft

▶ Right Angle Ear-Lug Terminals, Rear Exit Lug Terminals for 1A or 3A SPDT Switch

RV30YG

▶ Panel Mount, Ganged Tandem Unit, Single Shaft

▶ Right Angle Ear-Lug Terminals on Each Unit

RV30YGL

▶ Panel Mount, Ganged Tandem Unit, Single Shaft with Shaft Lock ▶ Right Angle Ear-Lug Terminals on Each Unit

RV30YGSE, RV30YGSF, RV30YGME & RV30YGMF

▶ Panel Mount, Ganged Tandem Unit with Switch, Single Shaft

▶ Right Angle Ear-Lug Terminals on Each Unit

▶ Rear Exit Lug Terminals for 1A or 3A SPST or SPDT Switch

RV30YT

▶ Panel Mount, Triple Unit, Single Shaft

▶ Right Angle Ear-Lug Terminals on Each Unit

RV30YD

▶ Panel Mount, Dual Unit, Dual Concentric Shaft

▶ Right Angle Ear-Lug Terminals on Each Unit

application area:​

The RV30YN20S single coil carbon film potentiometer is mainly used in instruments, precision mechanical equipment, welding equipment, audio equipment, automation equipment, communication, medical facilities, frequency converters, game consoles, UPS power supplies, etc
