Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: series
Payment & Shipping Terms
Standard Resistance Range: |
1kΩ To 100kΩ |
Resistance Tolerance: |
±10% Standard |
End Resistance: |
32Ωmax |
Resistance Taper: |
B=linear |
Independent Linearity: |
±3%max |
Peak Noise(C.R.V): |
3%max |
Power Rating: |
0.5 Watt At+40℃,0 Watt At +85℃ |
Maximum Input Voltage: |
200VDC Or Power Rating,whichever Is Smaller |
Insulation Resistance: |
100MΩ Minimum At 1,000VDC |
Adjustment Travel: |
280° |
Mechanical Travel: |
300°±5° |
Dielectric Strength: |
1,000VAC,1 Minute |
Shaft Torque: |
100 Gf·cm(1.386 Oz·in)max. |
Stop Strength: |
9 Kgf·cm(124.76 Oz·in)min. |
Shaft Strength (push): |
125N(12.75 Kgf)min |
Shaft Strength (tensile): |
125N(12.75 Kgf)min. |
Shaft End Play: |
±0.4×(shaft Length/30)mm Max. |
Mounting Nut Torque: |
15 Kgf·cm(207.94 Oz·in)min. |
Marking: |
Model Type,taper,resistance Code,shaft Type,terminal Identification,date Code |
Temperature Range: |
-10℃ To +85℃ |
Temperature Characteristics: |
+80℃,5 Hours △T/R≤±5% |
Temperature Cycle: |
-10℃,+80℃, 30 Minutes Each,5 Cycles △T/R≤±10% |
Load Life: |
+40℃,0.5 Watt,1,000 Hours △T/R≤±10% |
Moisture And Load Life: |
+40℃,90-95%RH,0.5 Watt,500 Hours AT/R≤±20% |
Vibration: |
10-55Hz,1.5mm Amplitude,3 Directions △T/R≤±5% |
Soldering Heat Resistance: |
350℃±5℃,3 Seconds △T/R≤±2% |
Rotational Life: |
2,000,000 Cycles Without Load △T/R≤±15% |
Standard Resistance Range: |
1kΩ To 100kΩ |
Resistance Tolerance: |
±10% Standard |
End Resistance: |
32Ωmax |
Resistance Taper: |
B=linear |
Independent Linearity: |
±3%max |
Peak Noise(C.R.V): |
3%max |
Power Rating: |
0.5 Watt At+40℃,0 Watt At +85℃ |
Maximum Input Voltage: |
200VDC Or Power Rating,whichever Is Smaller |
Insulation Resistance: |
100MΩ Minimum At 1,000VDC |
Adjustment Travel: |
280° |
Mechanical Travel: |
300°±5° |
Dielectric Strength: |
1,000VAC,1 Minute |
Shaft Torque: |
100 Gf·cm(1.386 Oz·in)max. |
Stop Strength: |
9 Kgf·cm(124.76 Oz·in)min. |
Shaft Strength (push): |
125N(12.75 Kgf)min |
Shaft Strength (tensile): |
125N(12.75 Kgf)min. |
Shaft End Play: |
±0.4×(shaft Length/30)mm Max. |
Mounting Nut Torque: |
15 Kgf·cm(207.94 Oz·in)min. |
Marking: |
Model Type,taper,resistance Code,shaft Type,terminal Identification,date Code |
Temperature Range: |
-10℃ To +85℃ |
Temperature Characteristics: |
+80℃,5 Hours △T/R≤±5% |
Temperature Cycle: |
-10℃,+80℃, 30 Minutes Each,5 Cycles △T/R≤±10% |
Load Life: |
+40℃,0.5 Watt,1,000 Hours △T/R≤±10% |
Moisture And Load Life: |
+40℃,90-95%RH,0.5 Watt,500 Hours AT/R≤±20% |
Vibration: |
10-55Hz,1.5mm Amplitude,3 Directions △T/R≤±5% |
Soldering Heat Resistance: |
350℃±5℃,3 Seconds △T/R≤±2% |
Rotational Life: |
2,000,000 Cycles Without Load △T/R≤±15% |

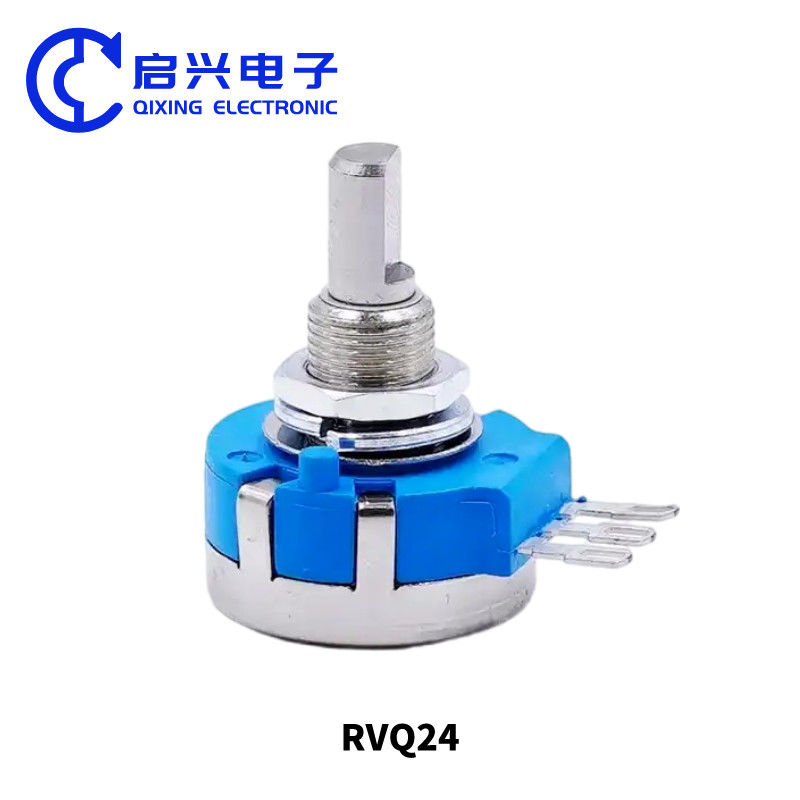

RVQ24 RVQ24YN RVQ24YN03 20F B502 20S B5K 5K long-life carbon film potentiometer switch
product name:
ong-life industrial control panel potentiometer Single turn game console potentiometer rotary potentiometer RVQ24
RVQ24YN03 Carbon film single turn potentiometer Long Life 24mm Diameter, Single-Turn, Carbon Panel Controls
RVQ24 potentiometer metal carbon membrane potentiometer Rvq24yn03 20S B502 longevity potentiometer RVQ24 RVQ24YN RVQ24YN03
product description:
RVQ24YN03 series potentiometer, high -quality precision potentiometer, long life rotor potentiometer, diameter 24mm potentiometer, single -circle carbon membrane potentiometer, industrial panel control potentiometer, RVQ24 metal axis potentiometer, longevity game electrical unit, precision instrument potential potential power level Instrument.
Product Features:
RVQ24YN03 long life gaming power level advantage: rotating life is as high as 3 million, with high precision and stability, optional resistance can meet the needs of various circuits, there are multiple shafts long, shafts available, installed installation, installation, installation, installation, installation Simple, convenient adjustment, wide application
▶ Long life 24mm diameter, ingle-turn industrial panel controls
▶ Carbon film element
▶ Single unit, single shaft
▶ High quality,2,000,000 cycle rotational life
▶ Low cost
▶ lndependent linearity, +3% max.
▶ Metal shaft and bushing
▶ Linear taper
▶ 6mm diameter shafts in slot, flat or round end styles
▶ Standard 15mm or 20mm shaft length
▶ Panel mount style
▶ Right angle ear-lug terminals
▶ Continuous rotation units available as special order
Product size:
Specification parameters:
| Electrical | |
| Standard Resistance Range | 1kΩ to 100kΩ |
| Resistance Tolerance | ±10% standard |
| End Resistance | 32Ωmax |
| Resistance Taper | B=linear |
| Independent Linearity | ±3%max |
| Peak Noise(C.R.V) | 3%max |
| Power Rating | 0.5 watt at+40℃,0 watt at +85℃ |
| Maximum Input Voltage | 200VDC or power rating,whichever is smaller |
| Insulation Resistance | 100MΩ minimum at 1,000VDC |
| Dielectric Strength | 1,000VAC,1 minute |
| Adjustment Travel | 280° |
| Mechanical | |
| Mechanical Travel | 300°±5° |
| Shaft Torque | 100 gf·cm(1.386 oz·in)max. |
| Stop Strength | 9 kgf·cm(124.76 oz·in)min. |
| Shaft Strength (push) | 125N(12.75 kgf)min |
| Shaft Strength (tensile) | 125N(12.75 kgf)min. |
| Shaft End Play | ±0.4×(shaft length/30)mm max. |
| Mounting Nut Torque | 15 kgf·cm(207.94 oz·in)min. |
| Marking | Model type,taper,resistance code,shaft type,terminal identification,date code |
| Environmental | |
| Temperature Range | -10℃ to +85℃ |
| Temperature Characteristics | +80℃,5 hours △T/R≤±5% |
| Temperature Cycle | -10℃,+80℃, 30 minutes each,5 cycles △T/R≤±10% |
| Load Life | +40℃,0.5 watt,1,000 hours △T/R≤±10% |
| Moisture and Load Life | +40℃,90-95%RH,0.5 watt,500 hours AT/R≤±20% |
| Vibration | 10-55Hz,1.5mm amplitude,3 directions △T/R≤±5% |
| Soldering Heat Resistance | 350℃±5℃,3 seconds △T/R≤±2% |
| Rotational Life | 2,000,000 cycles without load △T/R≤±15% |
| △T/R=Total Resistance Change | |
application area:
RVQ24YN03 long life gaming electric level is suitable for the throttle and brakes, car audio, industrial control panels, CNC equipment precision instruments, machine tools, home appliances, communication equipment, etc.
product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
