WDD35D4 5K 2W multi-turns conductive plastic precision Rotary potentiometer

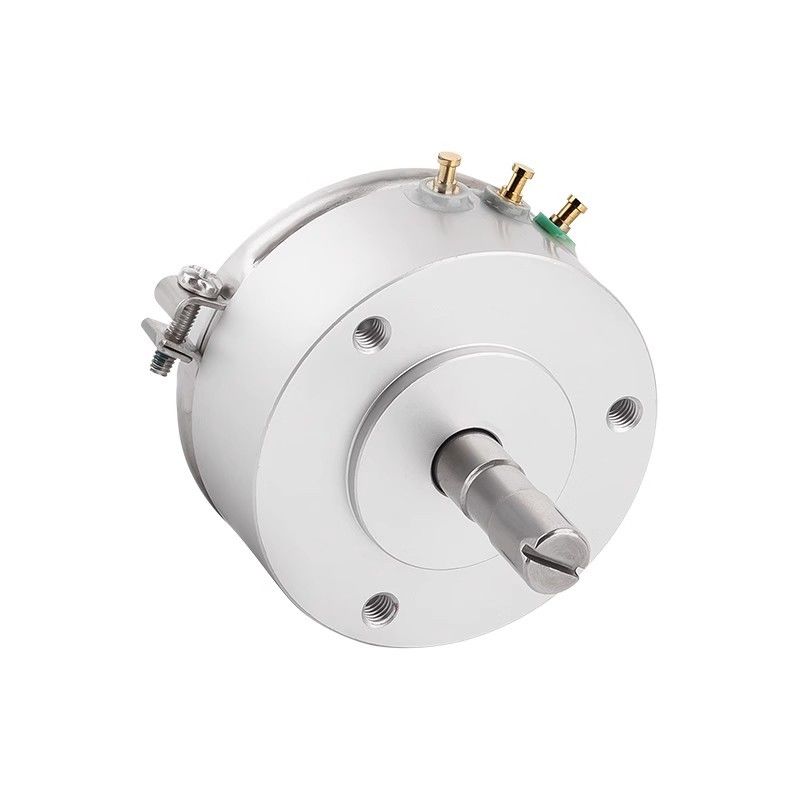

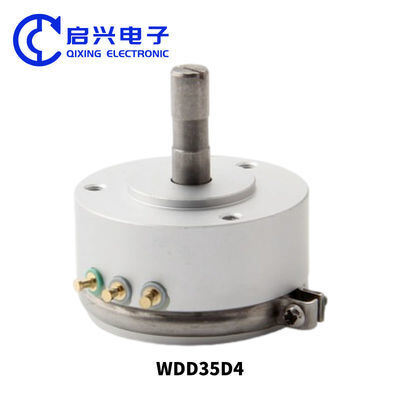

WDD35D4 Pictures:

WDD35D4-5K 2W multi-turns conductive plastic precision Rotary potentiometer

WDD35D4 Dimentions:

WDD35D4 Data :

Performance Parameters:

Resistance.................................................1 k, 2 k, 3 k, 5 k

The resistance tolerance..............................+ / - 15%

Independent linear......................................1%, 0.5%, 0.3%, 0.2%, 0.3%

Electrical Angle..........................................345 ° + /-5

The rated power........................................2 w (@ 70 ℃)

Temperature coefficient.............................400 PPM / ℃

Insulation resistance..................................1000 m or more Ω (1000 v d.c.)

High voltage.............................................1000 v (AC RMS) for 1 min

Smoothness.............................................plus or minus 0.10%

Mechanical properties:

Mechanical Angle....................................360 ° continuous

Start torque............................................1 or less x10 ^ 4 N · M

Ball bearing shaft bearing.........................two groups

Shaft....................................................stainless steel

The shell body.......................................aluminum alloy surface oxidation treatment (silver)

Environmental performance:

Mechanical life......................................50000000 RPM

Temperature range..................................-55 ℃ ~ +125 ℃

Vibration dynamic..................................15 g, 2000 hz

costs....................................................50g 11ms
