Product Details
Place of Origin: Sichuan, China
Brand Name: BONENS
Model Number: WTH118
Payment & Shipping Terms
product name

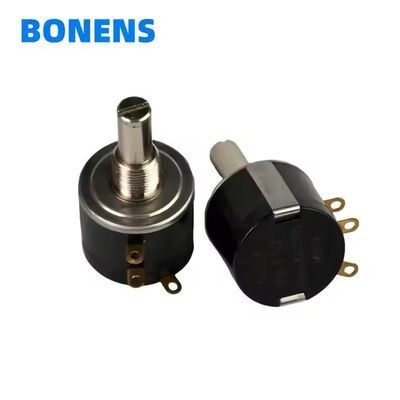

WTH118-2W 100K ohm Dual Gang Potentiometer Carbon Linear Variable Turn Rotary Potentiometer
product description
WTH118 single turn carbon film potentiometer, rated power: 2W, shape: circular, revolution: 1 turn, shaft: metal shaft, resistance material: carbon film, resistance adjustment method: rotary, resistance change method: X type (linear), allowable deviation of resistance value: ± 10 (%)
Product Features
Single coil carbon film potentiometer WTH118 adjustable sliding knob resistor features thickened casing, smooth operation, silver plated contacts, high mechanical strength, silver contacts, sturdy and durable, using copper contacts and silver contacts, strong conductivity, high bearing capacity, long mechanical life, stable working performance, excellent process, smooth operation, stable performance, high protection level
Product size
Specification parameters
|
Product name
|
Carbon film potentiometer
|
|
Specification
|
WTH118
|
|
Resistance range
|
100Ω-2.2MΩ
|
|
Resistance error
|
±20%
|
|
Rated power
|
0.25W
|
|
Rotation angle
|
280°±10°
|
|
Residual resistance
|
≤20Ω
|
|
Mechanical stroke
|
300°±5°
|
|
Rotation life
|
10000 cycles
|
|
temperature range
|
-10°C+85°C
|
|
external diameter
|
28MM
|
|
Shaft length(Non standard customizable)
|
20MM
|
|
Shaft diameter
|
6MM
|
|
Resistance taper
|
B linear
|
| packing | 50pcs/box |
application area
The single coil carbon film rotary potentiometer wth118 is widely used in fields such as work electronic equipment, communication, electronics, transportation, medical equipment, household appliances, testing instruments, power supply equipment, etc
product catalog
Factory Display
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
