product name

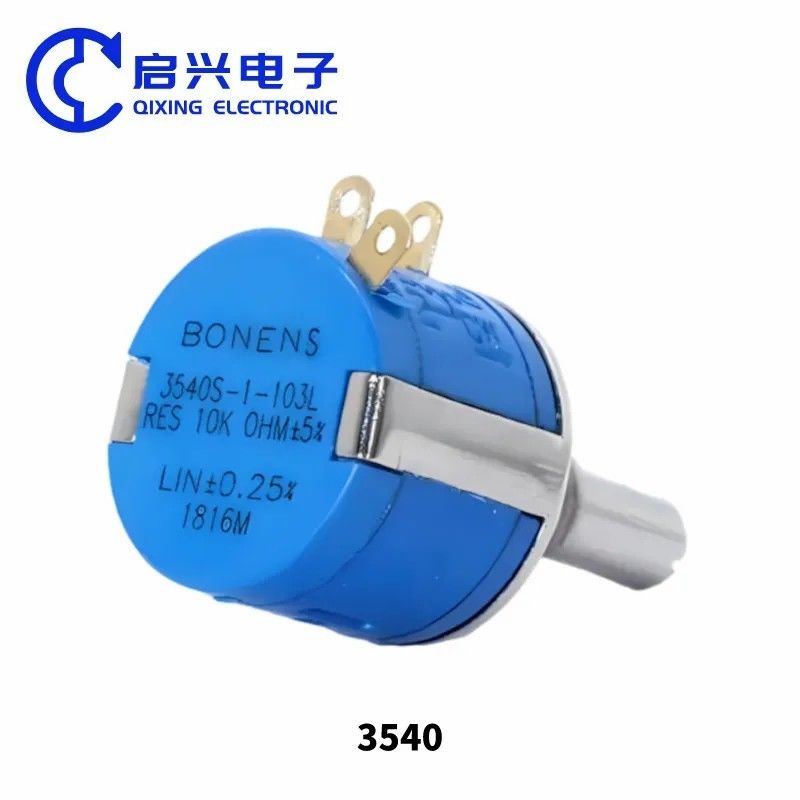

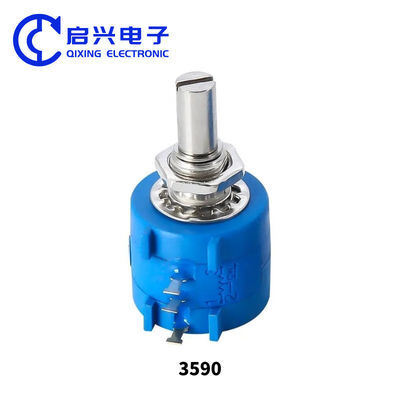

3540 50k ohms Multi-turn Wirewound Precision Potentiometer WXD3540 2w 10 turn
product description
| Part Number | Resistance (Ω) | Resolution |
| 3540S-1-201L | 200 | .042 |
| 3540S-1-501L | 500 | .031 |
| 3540S-1-102L | 1,000 | .027 |
| 3540S-1-202L | 2,000 | .021 |
| 3540S-1-502L | 5,000 | .021 |
| 3540S-1-103L | 10,000 | .019 |
| 3540S-1-203L | 20,000 | .014 |
| 3540S-1-503L | 50,000 | .011 |
| 3540S-1-104L | 100,000 | .008 |
Product Features
1.Bushing mount
2.ROHS compliant
3.Optional center tap and rear shaft extension
4.Optional AR lug feature
5.Gangable with common or concentric shafts
6.High torque available
7.Non-standard features and specificationsavailable
Product size
Specification parameters
|
Characteristics |
Range of nominal resistance
|
100~100KΩ
|
||||
|
Resistance tolerance
|
±2%, ±5%
|
|||||
|
Terminal resistance
|
≤2%R or 5Ω
|
|||||
|
Peak noise
|
≤100Ω
|
|||||
|
Linear accuracy
|
±1%, ±0.5%
|
|||||
|
Electrical angle
|
3600°±10°
|
|||||
|
Insulation resistance
|
≥ 200MΩ
|
|||||
|
Withstand voltage
|
500V (DC or AC peak value)
|
|||||
|
|
||||||
|
Environment
Characteristics |
Rated power
|
2W ( 300V 70 °C ) | ||||
|
Temperature range
|
-55°C~+125°C
|
|||||
|
TCR
|
±100×10-6/°C
|
|||||
|
Temperature shock
|
ΔR≤±3%R |
|||||
|
Collision (390m/S2, 4000 times)
|
ΔR≤±1%R |
|||||
|
Moisture proof (GJB306A-
96-Method106, not for 7a, 7b inapplicability) |
ΔR≤±3%R, Insulation Resistance≥100MΩ |
|||||
|
Vibration (10-500HZ, 0.75mm, 6h)
|
ΔR≤±1%R, Electrical break≤100μS |
|||||
|
Climate category(IEC68-2-2)
|
ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque≤20mN.m |
|||||
|
Operation at low temperature
(-55°C, 4h) |
ΔR≤±3%R, Starting Torque≤20mN.m |
|||||
|
Rotational life(10000cscles)
|
ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m
|
|||||
|
Electrical endurance (70°C, 2W, 1000h)
|
ΔR≤±3%R |
|||||
|
Steady damp heat (IEC68-2-3, Ca, 96h)
|
ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m |
|||||
|
|
||||||
|
Physical
Characteristics |
Total mechanical travel
|
3600°±10° |
||||
|
Rotational torque
|
2~10mN.m |
|||||
|
Stopper torque
|
≥300mN.m |
|||||
application area
The 3540 series of multi-turn precision wire-wound potentiometers are mainly used in the fields of instruments, meters, post and telecommunications, electric power equipment, railway signals, aviation and aerospace, etc
