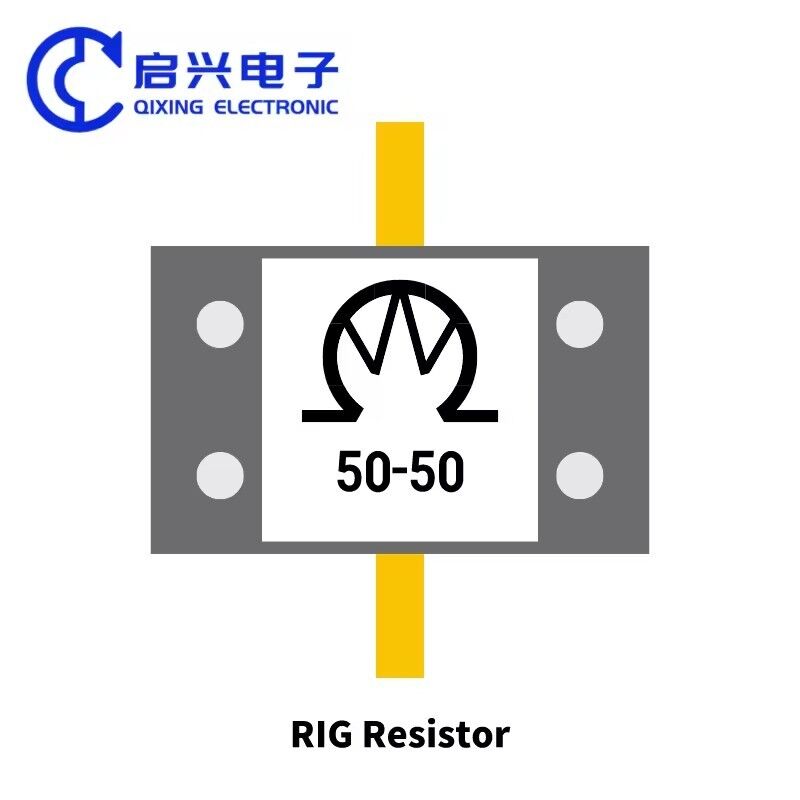

Lange Power Resistorsioo Ohm 800w 600w 500w 400w 250w 100w 100 Ohm Rf Resistors

Product Details

Place of Origin: chengdu

Brand Name: BONEN

Model Number: RIG Resistor

Payment & Shipping Terms

Get Best Price
Highlight:

100 Ohm Rf Resistors

,

100w Rf Resistors

,

600w rf resistors

Brand Name:
BONENS
Model Number:
RIG Resistor
Resistance:
50Ω
Resistance Tolerance:
5%
Operating Temperature:
-55℃~+165℃
Temperature Coefficient:
150ppm/℃
Rated Power:
250W
Brand Name:
BONENS
Model Number:
RIG Resistor
Resistance:
50Ω
Resistance Tolerance:
5%
Operating Temperature:
-55℃~+165℃
Temperature Coefficient:
150ppm/℃
Rated Power:
250W
Lange Power Resistorsioo Ohm 800w 600w 500w 400w 250w 100w 100 Ohm Rf Resistors

product name

RF radio frequency resistor/High power resistor/Micro -band resistor/High -frequency resistor/RIG resistor/Flange resistor/Power attenuator/Load terminal decay film/Microwave radio frequency resistor/Load resistor/High -frequency ceramic resistor/RF flange resistor

Electronic component passive component RF resistor 50 ohm 100 ohm 1000W flange installation terminal resistor ceramic power resistor

RF radio frequency resistor high -power micro -band resistor high -frequency resistor RIG resistor 1000W 800w 600w 500w 250w 150w 100w  60w 30w  50 ohm 100ohm ± 5%flange installation terminal resistor


product description

Description: RIG high power resistance is also called RIG RF resistor, RF RF resistor, high frequency RF resistor, flange RF resistor, load RF resistor, RF resistor and high power microband resistors




Product Features

1.Small volume, large power capacity, good high-frequency characteristics, reliable performance, and convenient installation

2.Suitable for power distributor, isolation resistance and terminal load resistor


parameter

Rated power:1w~1200w

Nominal resistance:1Ω~500Ω

Nominal resistance allowable deviation:±2%, ±5%

temperature coefficient :≤±200x10-6 ℃

material:Beryllium oxide, alumina

Leader Type:ingle lead, double lead

Flange Material:Copper plating, nickel plating, silver plating,

nstall:Flange type, surface mount type,

flange:Single flange, double flange, no flange,

temperature range:-55℃--+125℃,

use to:Divide current and voltage

rig (85).png

Electrical Characteristics
Range of nominal resistance
1Ω~50Ω
Resistance tolerance
±5%
Frequency range
0~2GHz
Standing wave ratio
1.2~1.3
Insulation resistance
≥ 1GΩ
Withstand voltage
500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power
1~1000W (70°C)
Temperature range
-55°C~+165°C
TCR
≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)



ΔR≤±5%
Collision
ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)
No loose and fall off
Solderability(240℃,3s)
Tin layer covering area of 95%

Product Size

 1 (2).png

1 (3).png

1 (1).png

application area

Application in cavity coupler, circuit breaker, duplexer, TV and FM transmitter, set-top box, generator, radar, satellite communications, electronic countermeasures and other military industry and mobile phone, PCS and commercial base station market areas.
