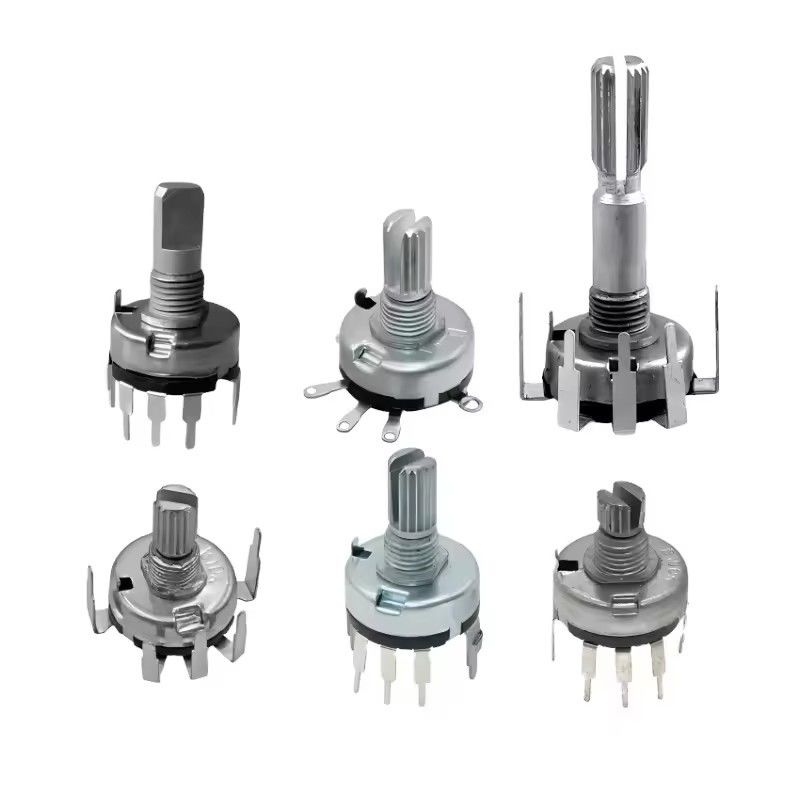

RV17 Carbon Film Potentiometer With Switch

product name

RV17 B1K B10K B50K single-link audio amplifier with switch volume adjustable rotary potentiometer 5 pins

product description

Total resistance value: 500 Ω -1M Ω

Total resistance tolerance: ± 20%

Impedance characteristic types: A, B, C, D

Noise: Less than 100mV at 20 mmc

Insulation impedance: More than 10M Ω at DC 250V

Voltage withstand: 1 minute at AC 250V

Residual resistance value: Term. 1-2: Less than 10 Ω Term. 2-3: Less than 10 Ω

Synchronous error (dual connection): -40dB~0dB ± 3dB

Rated voltage

B Linear: 10mm, 15mm: AC 100V 20mm, 25mm: AC 200V 30mm: AC 250V

Other linearity: 10mm, 15mm: AC 50V 20mm, 25mm: AC 150V 30mm: AC 200V

Rated power (single/double)

B Linear: 10mm, 15mm: 0.05W/0.025W 20mm, 25mm: 0.1W/0.05W 30mm: 0.2W/0.1W

Other linearity: 10mm, 15mm: 0.025W/0.012W 20mm, 25mm: 0.05W/0.025W 30mm: 0.1W/0.05W

mechanical properties

Force: 5-200 gf.cm

Center release force: 10-400 gf.cm

Stopping strength: 3.0Kgf.cm Min (from the base level to a point of 2mm)

Horizontal shaking amount of sliding handle: 2 (2xL)/20mm Max. (L: Level length both sides)

Horizontal push-pull strength: 3.0 Kgf Min. at 5 seconds

Durability performance

Rotating lifespan: 10000 Cycles

Product Features

The V17 carbon film potentiometer with switch is a potentiometer with high performance, multi-function, reliability and long service life. The RV17 carbon film potentiometer with switch is widely used in various electronic equipment, such as audio equipment, communication equipment, Instruments, home appliances, etc.

Product size

Specification parameters

application area:

RV17 carbon film potentiometer with switch is widely used in adjusting volume, dimming speed, electronic equipment, communications, electronics, transportation, medical equipment, household appliances, testing instruments, power supply equipment and other fields

product catalog:

Factory Display:

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
