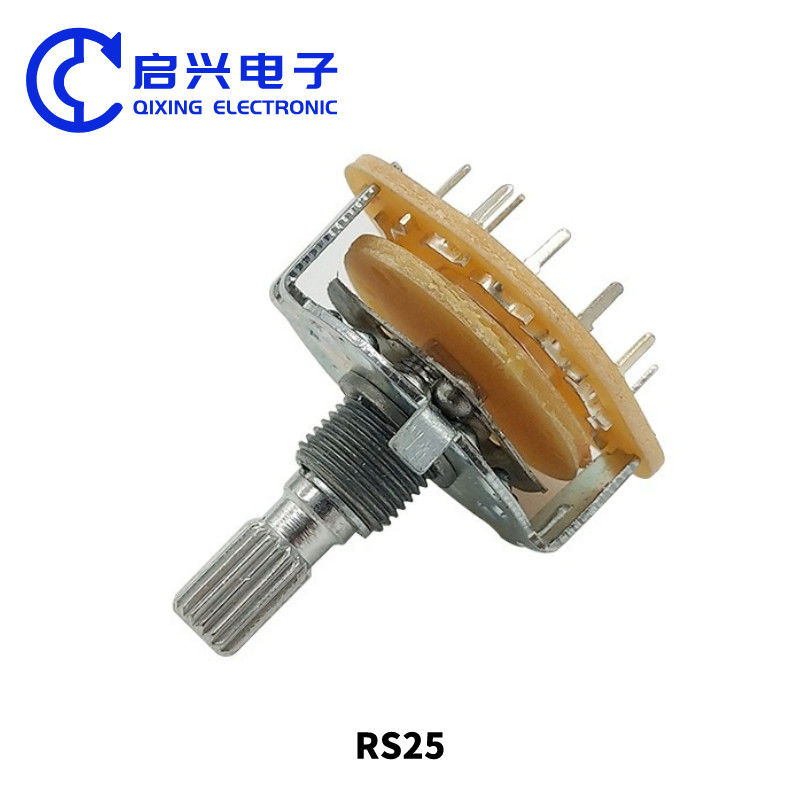

RS25 Industrial Potentiometer Rotary Switches 2 Pole 4 Position

1.2 Insulation Resistance: More than 100MΩ at DC500V

1.3 Withstand Voltage: For 1 minute at: 500V

1.4 Comtact Resistance: Less than 20mΩ

2. Mechanical Characteristics

2.1 Rotation Angle:

2.2 Rotation Torque: 3kgf.cm max

Pull-Push Strength of 3 axes: 5Kgf.cm

2.4 Rotational Stop-End Torque: 5kgf.cm

2.5 Solder To Soldering Heat: 260±5°C at 3±1 seconds

2.6 Use temperature range: (Used Temperature Range): -10C~70°C

2.7 Switch Action: 1±0.5kgf.cm

3 Durability (Durabillity)

3.1 Rotation Life: 10,000 Cycles Min

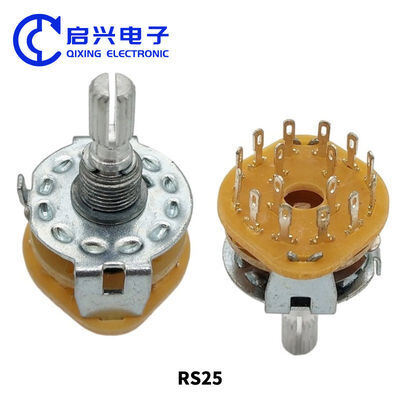

RS25 band switch description: RS25 band gear switches can be customized according to customer requirements, involving a variety of sizes, the smallest disc diameter is 12mm, and can be connected in series in multiple layers. RS25 band switch can be widely used in industrial control and small household appliance industry, reliable life, high-quality feeling, good sealing, perfect for use in various environments.6mm shaft diameter 18T RS25 2 pole 12 position rotary switch

Product size:

Specification parameters:

Applicable to various volume -by -time installations, you can choose multiple knives and more ways. Uses: It is suitable for the conversion or selection of various video products, household appliances, instruments and other gears.

product catalog:

Factory Display:

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
