product name:
BC1 Disc Adjustment Variable Resistor 300W 5R 10R 20R 50R
product description:
The BC1 series of rotor -arm sliding wire porcelain disk variants are suitable for voltage, current adjustment, and cross -current electric motor speed adjustment in industrial electrical equipment with a voltage of no more than 500 volts. The barrier is used as a resistance material to the round ceramics skeleton by the Kang copper line or nickel chromium wire. The resistance materials are coated with high temperature enamel coatings and bonded on the ceramics chassis except for sliding contact surface. The sliding of the grip and brush to obtain the resistance value of the change. The variable resistor is separated and protected. Its protective type is the barrier plus metal protective box shell, which is equipped with a handwheel.
The BC1 -type rotary arm sliding wire resistor has three types of two -combined three -united four -combined four -type type, with rated power from 25W to 2000W eight specifications. This product is suitable for the use of voltage, current adjustment, and the voltage adjustment of the DC electric motor in electricity equipment and circuits with no more than 380V and DC voltage not exceeding 220V.
The BC1 -type rotor -arm slide wire resistor is made of alloy resistance wire around the ring -shaped ceramic skeleton and then baked with high temperature -resistant glaze sintering or coating special coatings. Slip the resistance body to obtain the changing resistance value. The BC1 transformer has the advantages of high power, moisture resistance, and large regulation range. It is suitable for regulating control voltage, current, or adjustable load resistance in low -looking interchanging or DC electrical equipment.,
Product Features:
1. The BCI -type rotor -arm line -type resistor is fixed with alloy resistance wire around the ring -shaped ceramic skeleton and fixed with a high temperature glaze. The center of the disk is equipped with a rotor to drive the brush on the resistor body to obtain the changing resistance value Essence The product has the advantages of high power, humidity resistance, and large adjustment range.
2. Power: 25W-500W; Reward resistance: 10Ω-1K
3. Scope of application: Applicable to the use of voltage, current adjustment, and cross -flow generator voltage adjustment and small DC motor speed adjustment in industrial electrical settings with a voltage of not more than 500 volts.
4. Comply with the ROHS specification and Lead-free lead standard.
The BC-1 wire wound resistor has high resolution ability. The range of resistance value is wide, heat resistance, humidity resistance, wear resistance and other characteristics,
Suitable for the voltage and current adjustment of the power equipment and circuit that does not exceed 380V and the DC does not exceed 220V.
|
|

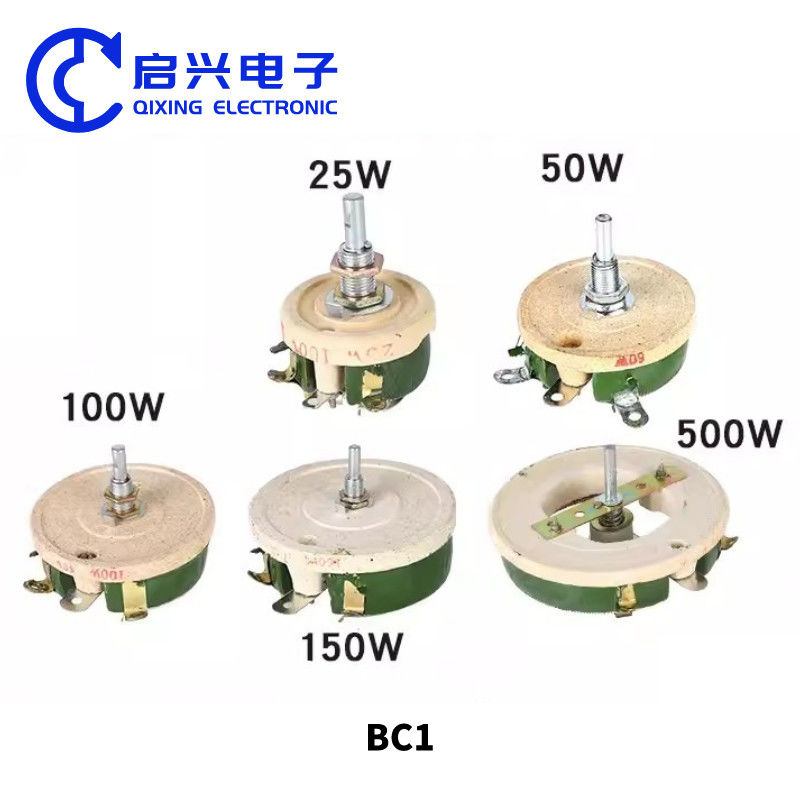

| BC1 disk variable resistor American red glaze | BC1 disk variable resistor green glaze |
Product size:
Technical parameters of BC1 -type rotor rotor resistance:
1. Extreme work voltage of the resistor: 1000V: an insulation voltage 2500V
2. The temperature rise of the barrier: 25-100W variety ≤300K; ≥150W variety: ≤350K
3. Sliding itinerary: 25-50W variety: 280 ± 5 °; ≥100W variety: 300 ± 5 °
4. Law of law blocking, linear deviation: In the entire itinerary, the rhythmic block changes to a straight line, and the linear deviation is not greater than ± 10%
5. The transformer control shaft rotates 5,000 weeks within a itinerary of not less than 90%.
6. The transformer with a high temperature of 40 ° C is 6 weeks (six days), and the insulation resistance is less than 1.5mΩ
|
|
|
|
|
|
|
|
| Reference map | Model power | A | B | F |
|
BCI-25w | 44 | 43 | 50 |
| 50w | 66 | 43 | 75 | |
| 100w | 84 | 43 | 95 | |
| 150w | 106 | 48 | 120 | |
| 300w | 170 | 74 | 180 | |
| 500w | 210 | 60 | 230 | |
| |
BCI-50W/2 | 80 | 100 | 75 |
| 100W/2 | 97 | 112 | 95 | |
| 150W/2 | 135 | 120 | 120 | |
| 300W/2 | 175 | 165 | 180 | |
| 500W/2 | 220 | 165 | 230 | |
|
BCI-150W/3 | 170 | 220 | 120 |
| 300W/3 | 175 | 275 | 180 | |
| 500W/3 | 220 | 275 | 230 |
Specification parameters:
| ELECTRICAL CHARACTERISTICS | ENVIRONMENT CHARACTERISTICS | ||
| Standard resistance range | 1Ω~5KΩ | temperature range | -55℃~350℃ |
| Resistance error error | 土10% | vibration | 10~200HZ,40m/S2, 3h△R≤±3%R |
| Terminal resistance | ≤0.2%or 1Ω | Temperature circulation | -55°,30min,85°,30min △R<+3%R,R1>500MΩ |
| Insulation resistance | ≥100mΩ(500Vdc) | Dampness | 40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
| Maximum heating temperature | 350℃ | Load -resistant | R≤1KQ,5000 cycles R≤1KQ, 1000 cycles△R≤±5%R |
| Head mechanical itinerary | 300°±10° | Shock | 60 ~ 100 times/min, 150m/s2,4000 times Electrical contact is good, inadvertently damaged |
application area:
Applicable online communication, transportation railway, electrical equipment, medical equipment, industrial equipment, low -frequency AC or DC electrical equipment for regulating control voltage, current or adjustable load resistance
