Product Details
Place of Origin: China
Brand Name: BONENS
Model Number: BC1
Payment & Shipping Terms
Nominal Resistance Range: |
1Ω~5kΩ |
Resistance Error Error: |
±10% |
Terminal Resistance: |
≤0.2%or1Ω |
Insulation Resistance: |
≥100mΩ（500Vdc） |
Maximum Heating Temperature: |
350° |
Head Mechanical Itinerary: |
300°±1 Rotate Smoothly |
Temperature Range: |
-55℃~350℃ |
Vibration: |
10~200HZ,40m/S2, 3h△R≤±3%R |
Temperature Circulation: |
-55°,30min,85°,30min △R<+3%R,R1>500MΩ |
Dampness: |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
Load -resistant: |
R≤1KQ,5000 Cycles R≤1KQ, 1000 Cycles△R≤±5%R |
Shock: |
60 ~ 100 Times/min, 150m/s2,4000 Times Electrical Contact Is Good, Inadvertently Damaged |
Nominal Resistance Range: |
1Ω~5kΩ |
Resistance Error Error: |
±10% |
Terminal Resistance: |
≤0.2%or1Ω |
Insulation Resistance: |
≥100mΩ（500Vdc） |
Maximum Heating Temperature: |
350° |
Head Mechanical Itinerary: |
300°±1 Rotate Smoothly |
Temperature Range: |
-55℃~350℃ |
Vibration: |
10~200HZ,40m/S2, 3h△R≤±3%R |
Temperature Circulation: |
-55°,30min,85°,30min △R<+3%R,R1>500MΩ |
Dampness: |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
Load -resistant: |
R≤1KQ,5000 Cycles R≤1KQ, 1000 Cycles△R≤±5%R |
Shock: |
60 ~ 100 Times/min, 150m/s2,4000 Times Electrical Contact Is Good, Inadvertently Damaged |

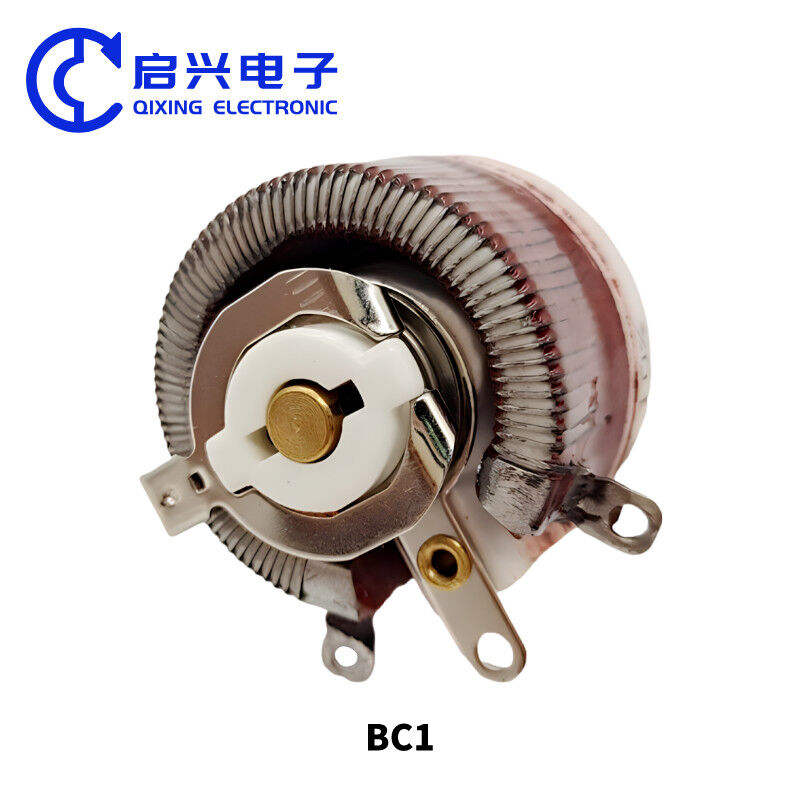

BC1 disc adjustable resistance electric welding machine generator current adjustable resistance 100W
product name:
BC1 -type rotor -type variable resistor/BC1 disc adjustable resistor/BC1 disk variable resistor/BC1 variable resistor/BC1 porcelain disk resistor/BC1 porcelain disk resistor
Circular disk resistor BC1 25W 50W 100W 200W 300W 1K adjustable potentiometer wire wound ceramic disk resistor
product description:
1. High power wirewound sliding rheostat are wound with chromium-alloy wire as a resistor element.
2.The entire component is coated non-flammable and high-temperature resin exception for the
slide contact surface.
3.After cooling and drying, insulation is applied through a high-temperature process. Installed
centered roating adjuster component slides along the resistance element to vary the
to the desired value.
4.High power rating,resistance to humidity, resistance value in great adjustable range.
5.On one resistor ,can have the different resistance requirement(flat and round wire can be in the same rheostat).
Product Features:
1.High power rating,resistance to humidity, resistance value in great adjustable range.
2.Widely used in educational modeling,load simulations,industiral machinery RPM adjustment, voltage and current adjustment,instruments,and automated control installations, ect.
3.Can provide the knob with customers requirement.
|
copper shaft Stainless steel base nut |
| 75 ceramic chassis Red Enamel Glaze copper wire |
|
|
High power 1000W 1500W 2000W Three potentiometer Four potentiometer customizable |
Product size:
| 功率(W) RATED POWER |
阻值范围(Q) RESISTANCE RANGE |
A | B | F |
| 25W | 1Q-5KΩ | 40 | 45 | 60 |
| 50W | 1Ω-5KΩ | 62 | 70 | 65 |
| 100W | 1Ω-5KΩ | 82 | 91 | 65 |
| 150W | 1Ω-5KΩ | 102 | 110 | 75 |
| 300W | 1Ω-5KΩ | 150 | 170 | 110 |
| 500W | 1Ω-5KΩ | 200 | 190 | 110 |
Specification parameters:
| 电阻特性 ELECTRICAL CHARACTERISTICS |
环境特性 ENVIRONMENT CHARACTERISTICS |
||
| 标准阻值范围 Standard resistance range |
1Ω~5KΩ | 温度范围 temperature range |
-55℃~350℃ |
| 阻值允许误差 Resistance error error |
土10% | 振动 vibration |
10~200HZ,40m/S2, 3h△R≤±3%R |
| 终端电阻值 Terminal resistance |
≤0.2%or 1Ω | 温度循环 Temperature circulation |
-55°,30min,85°,30min △R<+3%R,R1>500MΩ |
| 绝缘电阻 Insulation resistance |
≥100mΩ(500Vdc) | 受潮 Dampness |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
| 最高发热温度 Maximum heating temperature |
350℃ | 负荷耐磨 Load -resistant |
R≤1KQ,5000 cycles R≤1KQ, 1000 cycles△R≤±5%R |
| 总机械行程 Head mechanical itinerary |
300°±10° | 冲击 Shock |
60 ~ 100 times/min, 150m/s2,4000 times Electrical contact is good, inadvertently damaged |
application area:
Applicable online communication, transportation railway, electrical equipment, medical equipment, industrial equipment, low -frequency AC or DC electrical equipment for regulating control voltage, current or adjustable load resistance
