Product Details
Place of Origin: China
Brand Name: BONENS
Model Number: BC1
Payment & Shipping Terms
Nominal Resistance Range: |
1Ω~5kΩ |
Resistance Error Error: |
±10% |
Terminal Resistance: |
≤0.2%or1Ω |
Insulation Resistance: |
≥100mΩ（500Vdc） |
Maximum Heating Temperature: |
350° |
Head Mechanical Itinerary: |
300°±1 Rotate Smoothly |
Temperature Range: |
-55℃~350℃ |
Vibration: |
10~200HZ,40m/S2, 3h△R≤±3%R |
Temperature Circulation: |
-55°,30min,85°,30min △R<+3%R,R1>500MΩ |
Dampness: |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
Load -resistant: |
R≤1KQ,5000 Cycles R≤1KQ, 1000 Cycles△R≤±5%R |
Shock: |
60 ~ 100 Times/min, 150m/s2,4000 Times Electrical Contact Is Good, Inadvertently Damaged |
Nominal Resistance Range: |
1Ω~5kΩ |
Resistance Error Error: |
±10% |
Terminal Resistance: |
≤0.2%or1Ω |
Insulation Resistance: |
≥100mΩ（500Vdc） |
Maximum Heating Temperature: |
350° |
Head Mechanical Itinerary: |
300°±1 Rotate Smoothly |
Temperature Range: |
-55℃~350℃ |
Vibration: |
10~200HZ,40m/S2, 3h△R≤±3%R |
Temperature Circulation: |
-55°,30min,85°,30min △R<+3%R,R1>500MΩ |
Dampness: |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
Load -resistant: |
R≤1KQ,5000 Cycles R≤1KQ, 1000 Cycles△R≤±5%R |
Shock: |
60 ~ 100 Times/min, 150m/s2,4000 Times Electrical Contact Is Good, Inadvertently Damaged |
product name:

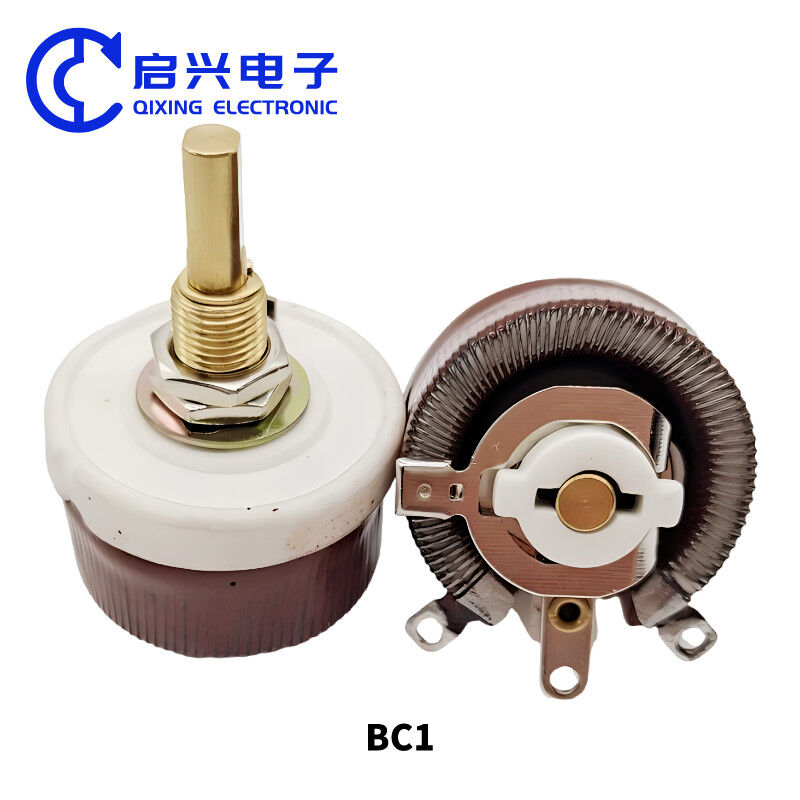

BC1 American High Power Disk Variable Disc Adjustable Resistance Sliding Rheostat 25W 50W 100W 500W
product description:
Product Features:
|
copper shaft Stainless steel base nut |
| 75 ceramic chassis Red Enamel Glaze copper wire |
|
|
High power 1000W 1500W 2000W Three potentiometer Four potentiometer customizable |
Product size:
| 功率(W) RATED POWER |
阻值范围(Q) RESISTANCE RANGE |
A | B | F |
| 25W | 1Q-5KΩ | 40 | 45 | 60 |
| 50W | 1Ω-5KΩ | 62 | 70 | 65 |
| 100W | 1Ω-5KΩ | 82 | 91 | 65 |
| 150W | 1Ω-5KΩ | 102 | 110 | 75 |
| 300W | 1Ω-5KΩ | 150 | 170 | 110 |
| 500W | 1Ω-5KΩ | 200 | 190 | 110 |
Specification parameters:
application area:
Applicable online communication, transportation railway, electrical equipment, medical equipment, industrial equipment, low -frequency AC or DC electrical equipment for regulating control voltage, current or adjustable load resistance
product catalog:
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
