Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: H-23-6A
Payment & Shipping Terms
product name:

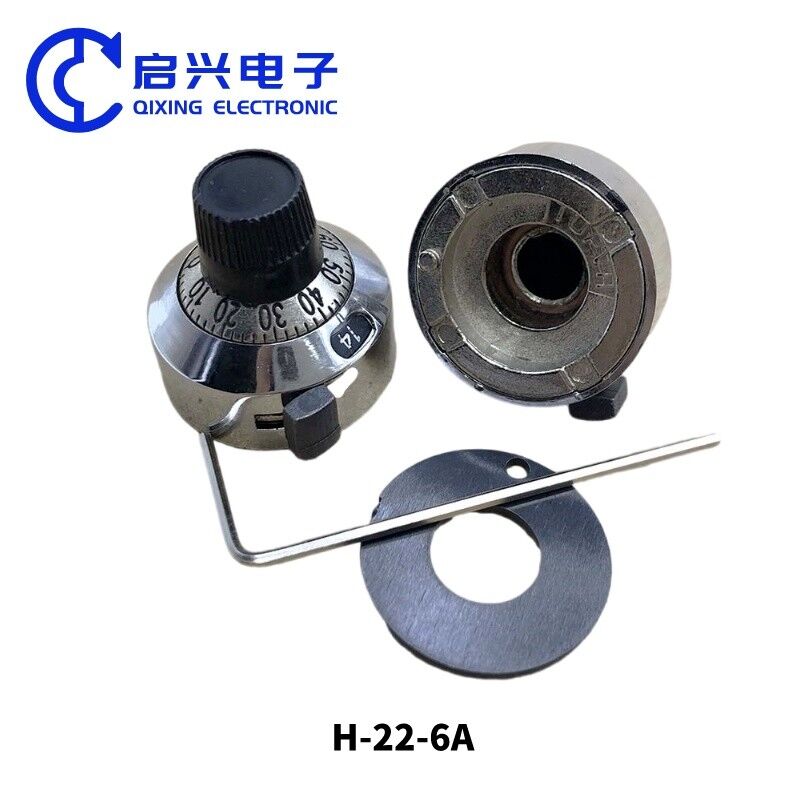

H-22-6A Digital knob multi-ring potentiometer knob 6.4mm metal knob can be equipped 3590S 534
product description:
Outer diameter: 22MM
Height: 24MM
Shaft hole diameter: 6.4MM
Center to center distance of positioning: 9
Dial scale: 0-90; Number of small window turns: 0-14
Fixed form: fixed with small screws on the side
Equipped with a switch locking device, the surface of the outer cover is electroplated, providing a decorative aesthetic.
Beautiful and generous appearance, uniform rotational torque, accurate handwriting display, and shockproof fastening structure.
Function: This product is mainly used for precision Φ 6.35 Multiple coil wire wound potentiometers for matching use, such as 3590S, et
Product Features:
H-23-6A is a multi turn potentiometer matching knob, with high shell material strength and surface finish. The internal mechanical structure adopts the principle of mechanical friction, with uniform feel and accurate and reliable positioning. The scale line is processed using corrosion method, and the scale is clear and easy to distinguish
1. No rebound, with locking function.
2. The structure is firm and reliable, specially designed for metal shafts.
3. Small size and compact, only need 22mm diameter panel space.
4. It can be rotated 15 times, with counter and dial, the scale is clear and easy to distinguish.
5. The internal mechanical structure adopts the principle of mechanical friction, which has uniform hand feel and accurate and reliable positioning.
Product size
Specification parameters:
Name: Potentiometer scale knob
Model: H-22-6A
Type: Turns-Counting Dial
Design: Concentric with Brake
Indicator type: Numbers, 15-Turn
Features: Turns-Counting Dial
Product type: Knobs & Dials
Shaft diameter: 1/4 in
Outer diameter: 23 mm
Height: 24 mm
application area
Suitable for various shaft diameter within 6.4mm: multiturn trimmer potentiometer, (such as: 3540 series, 3590 series, 7276 series, 7286 series, 534 series, 22HP-10 series, etc.), multiturn trimmer resistors, multiturn trimmer capacitors, governors, sensors, precision instruments, medical equipment, power supplies, automated measuring equipment or other multiturn rotating equipment.
Product packaging
Packing: 10pcs/box Weight: 50 g/pcs
